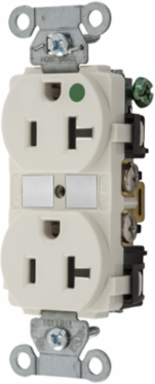

Hubbell Wiring Device-Kellems 8300LA Hospital Grade Duplex Receptacle, 20A 125V, Light Almond
- MPN: 8300LA
- UPC: 783585197395
- PPN: HBL-8300LA
CAD
$33.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Duplex Receptacle, Hospital Grade, Hubbell-Pro, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Light Almond.
Features
- Triple wipe contacts
- High impact resistant face with circuit I.D. marking area
- Steel mounting strap
Documentation & Downloads
Specifications
Dimensions
- Dimensions
- 3.28 in x 1.57 in x 1.15 in
- Height
- 1.15 in
- Weight
- 0.2 lb
Display SizeStandard Sized Product
Length3.28 in
Width1.57 in
Certifications and Compliance
- Nema Rating
- 5-20R
Conductor Related
- Number Of Wires
- 3-Wire
Wire Size#12 AWG to #10 AWG
General
- Application
- Hubbell-Pro Heavy Duty Hospital Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Item Type
- Traditional Duplex
- Material - Mounting Hardware
- Screw Mounting
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Series
- Hubbell-Pro
- Type
- Receptacle
ColorLight Almond
Horsepower - Maximum1
MaterialNylon
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StyleSmooth Face
UPC783585197395
Electrical Ratings
- Amperage Rating
- 20 A
- Current / Amperage Rating
- 20 A
- Dielectric Strength
- Withstands 2,000V minimum
- Voltage Rating
- 125 VAC
- Wattage
- 2500 W
ConnectivityBack and Side Wired
Current Rating20 A
PhaseSingle Phase
Voltage Rating Description125 V
Logistics
- Carton Quantity
- 10 EA
