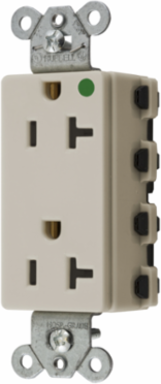

Hubbell Wiring Device-Kellems SNAP2182LAA Hospital Grade Decorator Duplex Receptacle, 20A 125V, Light Almond
- MPN: SNAP2182LAA
- UPC: 783585247885
- PPN: HBL-SNAP2182LAA
CAD
$33.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Decorator Duplex, SNAPConnect 2, Hospital Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Light Almond.
Features
- Self-grounding clip makes installation ease
- Audible SNAP, indicates solid connection
- Reduces installation time
- Fully insulated design
Documentation & Downloads
Specifications
Dimensions
- Dimensions
- 3.28 in x 1.64 in x 1.1 in
- Height
- 1.1 in
- Width
- 1.64 in
Display SizeStandard Sized Product
Length3.28 in
Certifications and Compliance
- Nema Rating
- 5-20R
Conductor Related
- Number Of Conductors
- 3-Wire Grounding
- Wire Size
- #12 AWG
Number Of Wires3-Wire
General
- Application
- Hospital Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Item Type
- Style Line Decorator
- Material - Mounting Hardware
- Screw Mounting
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Series
- Hospital Grade
- Type
- Standard Duplex
ColorLight Almond
Horsepower - Maximum1
MaterialNylon
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StyleStyle Line Decorator
UPC783585247885
Electrical Ratings
- Amperage Rating
- 20 A
- Current / Amperage Rating
- 20 A
- Dielectric Strength
- Withstands 2,000V minimum
- Voltage Rating
- 125 V
- Wattage
- 2500 W
ConnectivityConnectorized
Current Rating20 A
PhaseSingle Phase
Voltage Rating Description125 V
Logistics
- Carton Quantity
- 10 EA
