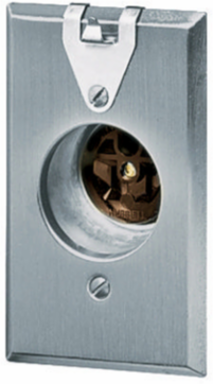

Hubbell Wiring Device-Kellems HBL5235 Clock Hanger Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, 4.5 x 2.75 Inch
- MPN: HBL5235
- UPC: 783585014111
- PPN: HBL-HBL5235
- UNSPSC: 39121406
CAD
$134.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Devices, Miscellaneous Receptacles, Clock Hanger, brown with Stainless steel plate, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Brown, Single Pack.
Features
- Miscellaneous Receptacles
- Clock Hanger
- brown with Stainless steel plate
- 15A 125V
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Dimensions | 4.5 in x 2.75 in x 1.62 in |
| Horsepower - Maximum | 0.5 |
| Length | 4.5 in |
| Amperage Rating | 15 A |
| Color | Brown |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Special Features | Clock Hanger |
| Voltage Rating | 125 V |
| Wire Size | #14 AWG to #10 AWG |
| Weight | 0.35 lb. |
| Engineering Drawing 1 Display Text | HBL5235 AutoCAD Drawing |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Description - Invoice | CLOCK HANG RCPT, 15A 125V, NEMA 5-15R |
| Harmonization Code | 8536698000 |
| MSDS Flag | No |
| Sub Class Code | A04A020 |
| Current Rating | 15 A |
| BOX SIZE | 5.300x11.000x6.500 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585014111 |
| Case Weight | 4.600 lb. |
| Lowest Level UOM | Each |
| Current / Amperage Rating | 15 A |
|---|---|
| Height | 1.62 in |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42 File 285;NEMA® WD-6 Compliant;UL Listed to UL498 File E2186 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2 or better;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Application | Commercial Specification Grade |
| Dielectric Strength | Withstands 2,000V minimum |
| NEMA Rating | 5-15R |
| Number of Wires | 3-Wire |
| Size | 4.5 in x 2.75 in x 1.62 in |
| Standard | Certified to CSA, C22.2, No. 42 File 285;NEMA® WD-6 Compliant;UL Listed to UL498 File E2186 |
| Wattage | 1875 W |
| Voltage Rating Description | 125 V |
| Width | 2.75 in |
| Connectivity | Screw Terminals |
| Nema Rating | 5-15R |
| Number Of Wires | 3-Wire |
| Class Code | A04 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 5235 |
| Material - Mounting Hardware | Screw Mounting |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 3.500 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Each - Pack Description | Each |
| NAICS Code | 335931A102 |
