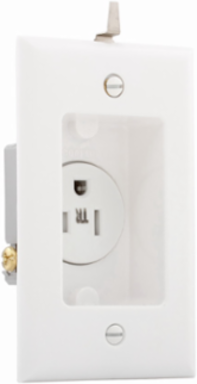

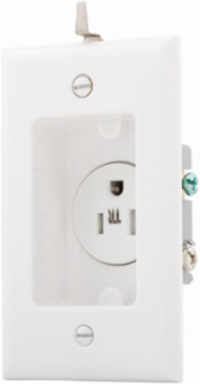

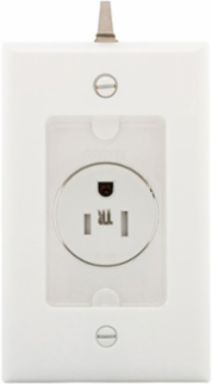

Eaton TR775W-BOX-SP Eaton commercial specification grade single receptacle — Color: White, Face/Body Material: Impact-resistant thermoplastic face and back body, Features: Clock hanger Tamper resistant, NEMA Configuration: 5-15R
- MPN: TR775W-BOX-SP
- UPC: 032664672361
- PPN: COW-TR775W-BOX-SP
CAD
$7.69
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton commercial specification grade single receptacle, #14-10 AWG, 15A, Commercial, Recessed, 125V, Side wire, White, Brass, Impact-resistant thermoplastic face and back body, 5-15R, Single, Screw, Thermoplastic, Retail Box
Specifications
Key Specifications
| Length | 2.75 in |
|---|---|
| Width | 0.85 in |
| Nom Product Type | Commercial specification grade |
| Type | Single receptacle |
| Voltage Rating | 125V |
| Application | Commercial |
| Number Of Wires | 3 |
| Number Of Poles | Two-pole |
| Material | Thermoplastic |
| Connection Type | Screw |
| NEMA Configuration | 5-15R |
| Face/Body Material | Impact-resistant thermoplastic face and back body |
| Product Series | Straightblade Receptacles |
| Height | 4.5 in |
|---|---|
| Weight | 0.278 lbs |
| Device Type | Receptacle |
| Amperage Rating | 15A |
| Contact Material | Brass |
| Wiring Method | Side wire |
| Mounting Method | Recessed |
| Style Type | Standard |
| Color | White |
| Allowable Wire Size | Side Wiring: #10-14 Copper or Copper Clad Aluminum |
| Design Type | Straight blade |
| Receptacle Type | Single |
