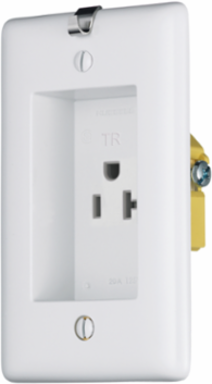

Bryant RR201CHWTR Straight Blade Clock Hanger Receptacle, Tamper Resistant, 20A 125V, 2-Pole 3-Wire Grounding
- MPN: RR201CHWTR
- UPC: 883778302220
- PPN: HBL-RR201CHWTR
- UNSPSC: 39121406
CAD
$20.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TradeSelect, Straight Blade, Single Receptacle, Clock Hanger, Tamper Resistant, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White Plate
Features
- Tamper-Resistant Clock Hanger/Recessed Receptacle
- Multiple drive Slot/Phillips/Robertson head screws
- UL Listed
- Clock Hanger Receptacle
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 3.000 in
- Amperage Rating
- 20 A
- Color
- White
- NEMA Rating
- 5-15R
- Number of Wires
- 3-Wire
- Special Features
- Clock Hanger Receptacle
- Type
- Single Receptacle
- Wattage
- 2500
- Voltage Rating Description
- 125 V
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- Clock Hanger / Recessed Receptacles
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- RR201CHW
- Current Rating
- 20 A
- Series
- Special Use
- BOX SIZE
- 3.900x12.000x4.900 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 883778302220
- Case Weight
- 7.825 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 43.200 in
- Pallet Weight
- 543.200 lb.
Current / Amperage Rating15 A
Industry Standard(s)UL Listed
ApplicationSpecial Use Products
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
StandardUL Listed
Voltage Rating125 V
Wire Size#12 AWG to #10 AWG
ConnectivityBack and Side Wired Screw Terminals
Nema Rating5-15R
Number Of Wires3-Wire
Description - InvoiceCLOCK HANG REC RCPT, 20A 125V, TR, WH
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.600 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70883778302229
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
