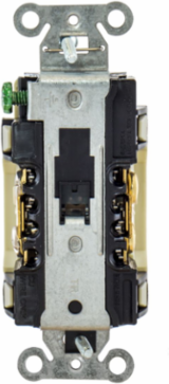

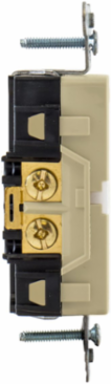

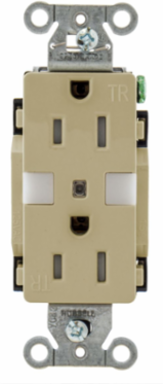

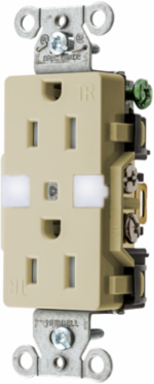

Bryant DR15NLIV Tamper Resistant Duplex Receptacle 15A 125V with Night Light, Ivory, 3.29 Inch x 1.15 Inch
- MPN: DR15NLIV
- UPC: 783585541310
- PPN: HBL-DR15NLIV
- UNSPSC: 39121406
CAD
$39.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacle, Tamper Resistant Decorator Duplex, Commercial Grade, 15A 125V, 2-Pole 3- Wire Grounding, 5-15R, With Night Light, Ivory.
Features
- LED light activated when low levels of ambient light are detected by photosensor
- Tamper-resistant shutter complies with national electrical code
- Aesthetic Style Line® decorator design
- Tamper Resistant
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 3.29 in x 1.15 in x 1.29 in
- Horsepower - Maximum
- 0.5
- Length
- 3.29 in
- Amperage Rating
- 15 A
- Color
- Ivory
- NEMA Rating
- 5-15R
- Number of Wires
- 3-Wire
- Special Features
- Tamper Resistant
- Type
- Nightlight
- Wattage
- 1875 W
- Voltage Rating Description
- 125 V
- Width
- 1.15 in
- Connectivity
- Back and Side Wired
- Nema Rating
- 5-15R
- Number Of Wires
- 3-Wire
- Style
- Style Line Decorator
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
Current / Amperage Rating15 A
Height1.29 in
Industry Standard(s)Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Color Temperature - 3400K - 3600K;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Electrical - LED Energy Consumed - 0.5 watt;Electrical - Light Output - 0.5 Lumens;Electrical - Rating - 15A, 125VAC Only;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
ApplicationCommercial Specification Grade
Dielectric StrengthWithstands 2,000V minimum
Number of Poles2-Pole
Size3.29 in x 1.15 in x 1.29 in
StandardCertified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Voltage Rating125 V
Wire Size#14 AWG to #10 AWG
Weight0.2 lb.
General Literature Asset 1 Display TextResidential Catalog
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceTAMP RES, DECO FACE, NL, 5-15R, IV
Harmonization Code8536698000
MSDS FlagNo
Current Rating15 A
SeriesCommercial Specification Grade
BOX SIZE3.700x9.900x4.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585541310
Case Weight22.950 lb.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
