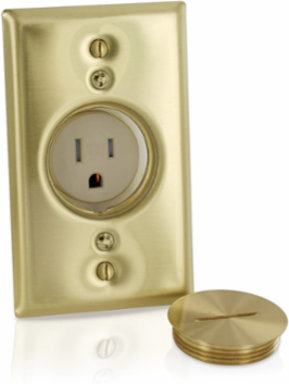

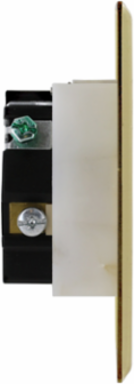

Leviton T5250-B 15 Amp Brass Recessed Tamper-Resistant Outlet, NEMA 5-15R, 125 Volt
- MPN: T5250-B
- UPC: 078477703496
- PPN: LEV-T5250-B
CAD
$89.80
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Single Receptacle Outlet, Commercial Specification Grade, Recessed Display, Tamper-Resistant, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - Brass
Features
- Tamper-Resistant receptacle meets NEC Article 406.12 requirements
- Single receptacle is ideal for applications that require a dedicated circuit
- Quick installation: simply wire and mount to a standard single gang box
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- Certification/Listing
- cCSAus, NOM-ANCE
Applicable StandardsUL 498, UL514A, CSA C22.2 No. 42, CSA C22.2 No 18.1-04
NEMAWD-1 & WD-6
Material Specifications
- Body Material
- Nylon
- Face Material
- Nylon
- Line Contacts
- Brass Triple-Wipe
- Strap Material
- Zinc-Plated Steel
Cap MaterialBrass
Grounding ScrewSteel
Mounting ScrewsSteel
WallplateSolid Brass 0.060 In Thick
Mechanical Specifications
- Terminal Accom.
- 14-10 AWG
- Termination
- Back and Side Wire
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Product Features
- Color
- Ivory
- Type
- Wood Frame
FeatureTamper-Resistant
Warranty
- Warranty
- 10-Year Limited
Environmental Specifications
- Operating Temperature
- -40°C to 75°C
Electrical Specifications
- Amperage
- 15 A
- Pole
- 2
- Voltage
- 125 VAC
Dielectric VoltageWithstands 2000V per UL498
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1/2 HP
