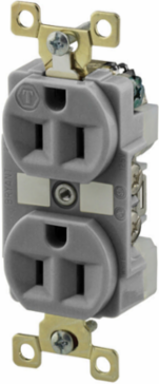

Bryant BRY5262GRY Duplex Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, 3.28 Inch x 1.54 Inch x 1.16 Inch, Gray
- MPN: BRY5262GRY
- UPC: 781786005037
- PPN: HBL-BRY5262GRY
- UNSPSC: 39121406
CAD
$46.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Gray, Single Pack
Features
- Duplex
- Commercial/Industrial Grade
- 15A 125V
- 2-Pole 3-Wire Grounding
- 5-15R
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 3.28 in x 1.54 in x 1.16 in
- Length
- 3.28 in
- Amperage Rating
- 15 A
- Color
- Gray
- NEMA Rating
- 5-15R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.54 in x 1.16 in
- Type
- Duplex Receptacle
- Wattage
- 1875
- Voltage Rating Description
- 125 V
- Width
- 1.54 in
- Connectivity
- Back and Side Wired
- Nema Rating
- 5-15R
- Number Of Wires
- 3-Wire
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 5262GRY
- Material - Mounting Hardware
- Screw Mounting
- Series
- Extra Heavy Duty
- BOX SIZE
- 2.900x8.500x5.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786005037
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
Current / Amperage Rating15 A
Height1.16 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial Specification Grade
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesStandard Product
Voltage Rating125 V
Wire Size#14 AWG to #12 AWG
Weight0.25 lb.
General Literature Asset 1 Display TextGeneral Literature - BRYANT® Wiring Devices
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleFinder Groove Face
Description - InvoiceDUP RCPT, IND GRD, 15A 125V, 5-15R, GY
Harmonization Code8536698000
MSDS FlagNo
Sub Class CodeA04A020
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.3 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight23.350 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
