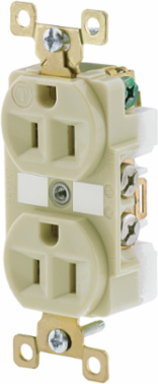

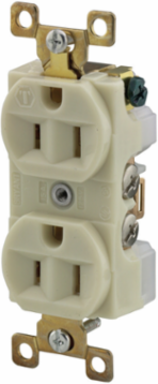

Bryant BRY5262I Duplex Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, Ivory, 3.28 Inch x 1.54 Inch x 1.16 Inch
- MPN: BRY5262I
- UPC: 781786005044
- PPN: HBL-BRY5262I
- UNSPSC: 39121406
CAD
$46.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Ivory, Single Pack
Features
- Duplex
- Commercial/Industrial Grade
- 15A 125V
- 2-Pole 3-Wire Grounding
- 5-15R
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- General Literature - BRYANT® Wiring Devices
- Current / Amperage Rating
- 15 A
- Height
- 1.16 in
- Amperage Rating
- 15 A
- Color
- Ivory
- NEMA Rating
- 5-15R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.54 in x 1.16 in
- Type
- Duplex Receptacle
- Wattage
- 1875
- Voltage Rating Description
- 125 V
- Width
- 1.54 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- Finder Groove Face
- Description - Invoice
- DUP RCPT, IND GRD, 15A 125V, 5-15R, IV
- Harmonization Code
- 8536690200
- MSDS Flag
- No
- Sub Class Code
- A04A020
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.25 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 23.600 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 45.500 in
- Pallet Weight
- 1298.000 lb.
Country of OriginChina
Dimensions3.28 in x 1.54 in x 1.16 in
Length3.28 in
ApplicationExtra Heavy Duty Industrial Specification Grade
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesStandard Product
Voltage Rating125 V
Wire Size#14 AWG to #12 AWG
Weight0.2 lb.
ConnectivityBack and Side Wired
Nema Rating5-15R
Number Of Wires3-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number5262I
Material - Mounting HardwareScrew Mounting
SeriesExtra Heavy Duty
BOX SIZE2.800x8.500x5.300 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786005044
Case - Total Units100 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70781786005043
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
