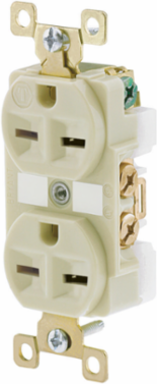

Bryant BRY5662I Duplex Receptacle 15A 250V 2-Pole 3-Wire Grounding NEMA 6-15R Ivory
Bryant BRY5662I Duplex Receptacle 15A 250V 2-Pole 3-Wire Grounding NEMA 6-15R Ivory
- MPN: BRY5662I
- UPC: 781786005495
- PPN: HBL-BRY5662I
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$70.77/ EA
Description
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 15A 250V, 2-Pole 3-Wire Grounding, 6-15R, Ivory, Single Pack
Features
- Duplex
- Commercial/Industrial Grade
- 15A 250V
- 2-Pole 3-Wire Grounding
- 6-15R
- Standard Product
Specifications
Specifications
- Country of Origin
- CN
- Dimensions
- 3.28 in x 1.54 in x 1.16 in
- Height
- 1.16 in
- Amperage Rating
- 15 A
- Color
- Ivory
- NEMA Rating
- 6-15R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.54 in x 1.16 in
- Type
- Duplex Receptacle
- Wattage
- 3750
- Voltage Rating Description
- 250 V
- Width
- 1.54 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- Finder Groove Face
- Description - Invoice
- DUP RCPT, IND GRD, 15A 250V, 6-15R, IV
- Harmonization Code
- 8536690200
- MSDS Flag
- No
- Sub Class Code
- A04A020
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.300 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 23.600 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 45.500 in
- Pallet Weight
- 1298.000 lb.
Current / Amperage Rating15 A
Each - Width3.300 in
Length3.28 in
ApplicationExtra Heavy Duty Industrial Specification Grade
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesStandard Product
Voltage Rating250 V
Wire Size#14 AWG to #12 AWG
Weight0.2 lb.
ConnectivityBack and Side Wired
Nema Rating6-15R
Number Of Wires3-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number5642I
Material - Mounting HardwareScrew Mounting
SeriesExtra Heavy Duty
BOX SIZE2.800x8.500x5.300 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786005495
Case - Total Units100 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70781786005494
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
