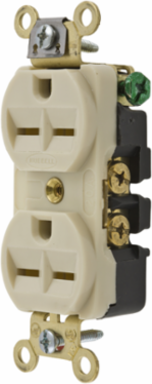

Hubbell Wiring Device-Kellems HBL5652I Duplex Receptacle 15A 250V 6-15R Ivory 2-Pole 3-Wire
- MPN: HBL5652I
- UPC: 783585435381
- PPN: HBL-HBL5652I
- UNSPSC: 39121406
CAD
$50.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Receptacles, Duplex, Specification Grade, 2-Pole 3-Wire Grounding, 15A 250V, 6-15R, Ivory, Single Pack
Features
- One-piece brass integral ground strap
- Unique bypass contact design
- Self Grounding
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Horsepower - Maximum
- 1.5
- Length
- 3.28 in
- Amperage Rating
- 15 A
- Color
- Ivory
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Standard
- Certified to CSA 22.2, No. 42 File 285;Guide RTRT Fed Spec WC596G;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Wattage
- 3750 W
- Voltage Rating Description
- 250 V
- Width
- 1.33 in
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- DUP RCPT, IND GRD, 15A 250V, 6-15R, IV
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Sub Class Code
- A04A020
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.45 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 24.750 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating15 A
Industry Standard(s)Certified to CSA 22.2, No. 42 File 285;Guide RTRT Fed Spec WC596G;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2 or better;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
ApplicationExtra Heavy Duty
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating6-15R
Number of Wires3-Wire
Special FeaturesSelf Grounding
Voltage Rating250 V
Wire Size#14 AWG to #10 AWG
Weight0.2 lb.
General Literature Asset 1 Display TextPulp & Paper Solutions
ConnectivitySide Wired Only
Nema Rating6-15R
Number Of Wires3-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number5652I
Material - Mounting HardwareScrew Mounting
MaterialNylon
BOX SIZE3.300x9.500x4.300 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585435381
Case - Total Units100 EA
Each - Pack DescriptionEach
NAICS Code335931A102
