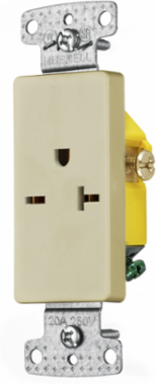

Bryant RRD205I Single Decorator Receptacle, Self Grounding, 20A 250V, 2-Pole 3-Wire, Ivory
Bryant RRD205I Single Decorator Receptacle, Self Grounding, 20A 250V, 2-Pole 3-Wire, Ivory
- MPN: RRD205I
- UPC: 883778300745
- PPN: HBL-RRD205I
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$29.58/ EA
Description
TradeSelect, Single Decorator Receptacle, Self Grounding, 20A 250V, 2-Pole 3-Wire Grounding, 6-20R, Ivory
Features
- Single Decorator Receptacle
- Self Grounding
- 20A 250V
- 2-Pole 3-Wire Grounding
Specifications
Specifications
- Country of Origin
- China
- Width
- 1.200 in
- Application
- Residential Receptacles
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Voltage Rating
- 250V kV
- Wire Size
- #14 AWG to #12 AWG
- Connectivity
- Side Wired
- Nema Rating
- 6-20R
- Number Of Wires
- 3-Wire Grounding
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- BOX SIZE
- 2.100x7.900x4.300 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 883778300745
- Case Weight
- 10.000 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Amperage Rating20 A
ColorIvory
NEMA Rating6-20R
Number of Wires3-Wire Grounding
Special FeaturesSelf Grounding
Wattage5000
Voltage Rating Description250V kV
Display SizeStandard Sized Product
Number Of Poles2-Pole
Description - InvoiceRESI SGL RCPT, 20A 250V, S GRND, DEC, IV
Harmonization Code8536698000
MSDS FlagNo
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.55 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
