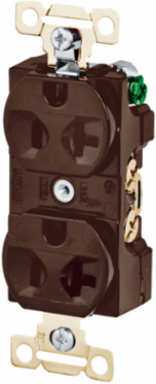

Bryant 5342 Duplex Receptacle, Commercial Grade, 20A 125V, 2-Pole 3-Wire, Side Wired, Brown
Bryant 5342 Duplex Receptacle, Commercial Grade, 20A 125V, 2-Pole 3-Wire, Side Wired, Brown
- MPN: 5342
- UPC: 781786625327
- PPN: HBL-5342
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$37.14/ EA
Description
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, Side Wired, 20A 125V, 5-20R, Brown, Single Pack
Features
- Duplex
- Commercial/Industrial Grade
- 2-Pole 3-Wire Grounding
- Side Wired
- 20A 125V
- Standard Product
Specifications
Specifications
- Country of Origin
- CN
- Dimensions
- 3.28 in x 1.38 in x 0.92 in
- Height
- 0.92 in
- Amperage Rating
- 20 A
- Color
- Brown
- NEMA Rating
- 5-20R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.38 in x 0.92 in
- Type
- Duplex Receptacle
- Wattage
- 2500
- Voltage Rating Description
- 125 V
- Width
- 1.38 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- Finder Groove Face
- Description - Invoice
- DUP RCPT, INT GRD, 20A 125V, 5-20R, BR
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Sub Class Code
- A04A020
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.1 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 20.000 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Each - Width1.400 in
Length3.28 in
ApplicationExtra Heavy Duty Compact Industrial Specification Grade
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesStandard Product
Voltage Rating125 V
Wire Size#14 AWG to #12 AWG
Weight0.2 lb.
ConnectivitySide Wired Only
Nema Rating5-20R
Number Of Wires3-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replacement Catalog NumberHBL5342
Material - Mounting HardwareScrew Mounting
SeriesHeavy Duty
BOX SIZE3.000x8.700x5.200 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786625327
Case - Total Units100 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
