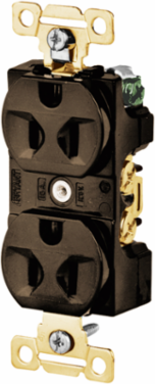

Bryant 5242 Duplex Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, Side Wired, Brown
- MPN: 5242
- UPC: 781786624788
- PPN: HBL-5242
- UNSPSC: 39121406
CAD
$26.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, Side Wired, 15A 125V, 5-15R, Brown, Single Pack
Features
- Duplex
- Commercial/Industrial Grade
- 2-Pole 3-Wire Grounding
- Side Wired
- 15A 125V
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 1.900 in
- Application
- Extra Heavy Duty Compact Industrial Specification Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Type
- Duplex Receptacle
- Wattage
- 1875
- Voltage Rating Description
- 125 V
- Connectivity
- Side Wired Only
- Nema Rating
- 5-15R
- Number Of Wires
- 3-Wire
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 524244
- Sub Class Code
- A04A020
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.15 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 21.250 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating15 A
Amperage Rating15 A
ColorBrown
NEMA Rating5-15R
Number of Wires3-Wire
Special FeaturesStandard Product
Voltage Rating125 V
Wire Size#14 AWG to #12 AWG
Weight0.2 lb.
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleFinder Groove Face
Description - InvoiceDUP RCPT, INT GRD, 15A 125V, 5-15R, BR
Harmonization Code8536698000
MSDS FlagNo
Replacement Catalog NumberHBL5242
Material - Mounting HardwareScrew Mounting
SeriesHeavy Duty
BOX SIZE3.000x8.400x5.300 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786624788
Case - Total Units100 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
