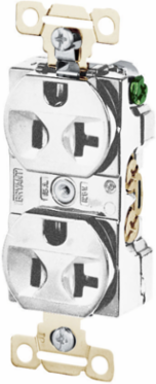

Bryant 5342W Duplex Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, Side Wired, White
- MPN: 5342W
- UPC: 781786714779
- PPN: HBL-5342W
- UNSPSC: 39121406
CAD
$38.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, Side Wired, 20A 125V, 5-20R, White, Single Pack
Features
- Duplex
- Commercial/Industrial Grade
- 2-Pole 3-Wire Grounding
- Side Wired
- 20A 125V
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 3.28 in x 1.38 in x 0.92 in
- Length
- 3.28 in
- Application
- Extra Heavy Duty Compact Industrial Specification Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard Product
- Voltage Rating
- 125 V
- Wire Size
- #14 AWG to #12 AWG
- Weight
- 0.25 lb.
- Connectivity
- Side Wired Only
- Nema Rating
- 5-20R
- Number Of Wires
- 3-Wire
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A020
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.3 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10
- Each - Pack Description
- Each
Current / Amperage Rating20 A
Height0.92 in
Amperage Rating20 A
ColorWhite
NEMA Rating5-20R
Number of Wires3-Wire
Size3.28 in x 1.38 in x 0.92 in
TypeDuplex Receptacle
Wattage2500
Voltage Rating Description125 V
Width1.38 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleFinder Groove Face
Description - InvoiceDUP RCPT, INT GRD, 20A 125V, 5-20R, WH
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
SeriesHeavy Duty
BOX SIZE2.700x8.700x5.300 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786714779
Case Weight25.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
