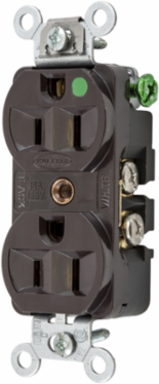

Hubbell Wiring Device-Kellems HBL8200H Extra Heavy Duty Duplex Receptacle, 15A 125V, Brown, Compact Design
- MPN: HBL8200H
- UPC: 783585015828
- PPN: HBL-HBL8200H
CAD
$27.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Compact Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5- 15R, Brown, Single Pack.
Features
- Slender/compact design
- Impact-resistant finder groove face
- Triple wipe contacts
Documentation & Downloads
Specifications
Dimensions
- Dimensions
- 3.28 in x 1.33 in x 1.05 in
- Height
- 1.05 in
- Weight
- 0.25 lb
Display SizeSlender/Compact
Length3.28 in
Width1.33 in
Certifications and Compliance
- Nema Rating
- 5-15R
Conductor Related
- Number Of Wires
- 3-Wire
Wire Size#14 AWG to #10 AWG
General
- Application
- Slender/Compact Hospital Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Item Type
- Traditional Duplex
- Material - Mounting Hardware
- Screw Mounting
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Series
- Hospital Grade
- Type
- Receptacle
ColorBrown
Horsepower - Maximum0.5
MaterialThermoplastic
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StyleFinder Groove Face
UPC783585015828
Electrical Ratings
- Amperage Rating
- 15 A
- Current / Amperage Rating
- 15 A
- Dielectric Strength
- Withstands 2,000V minimum
- Voltage Rating
- 125 V
- Wattage
- 1875 W
ConnectivityBack and Side Wired Screw Terminals
Current Rating15 A
PhaseSingle Phase
Voltage Rating Description125 V
Logistics
- Carton Quantity
- 10 EA
