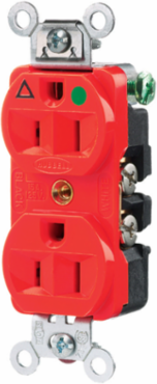

Hubbell Wiring Device-Kellems IG8200R Hospital Grade Duplex Receptacle 15A 125V, 2-Pole, 3-Wire, Compact Design
Hubbell Wiring Device-Kellems IG8200R Hospital Grade Duplex Receptacle 15A 125V, 2-Pole, 3-Wire, Compact Design
- MPN: IG8200R
- UPC: 783585879185
- PPN: HBL-IG8200R
- UNSPSC: 39121406
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$80.52/ EA
Description
Straight Blade Duplex Receptacle, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R
Features
- Triangle marking on face indicates isolated ground
- Slender/compact design
- Impact-resistant finder groove face
- Triple wipe contacts
- Isolated ground
Specifications
- Amperage
- 15 A
- Number of Poles
- 2-Pole
- Grounding
- Isolated Ground
- Wattage
- 1875 W
- Weight
- 0.25 lb.
- Base Material
- PBT
- Clamp Material
- Nickel plated steel
- Mounting Strap Material
- Brass
- Mounting Screws Material
- Stainless steel
- Operating Temperature
- -40°C to 75°C
- Dielectric Strength
- Withstands 2,000 V minimum
- Terminal Accommodation
- #14-#10 AWG stranded or solid copper wire
- Phase
- Single Phase
- Country of Origin
- PR
- Mounting Type
- Screw Mounting
- NEMA Rating
- 5-15R
Voltage125 V
Number of Wires3-Wire
Device TypeDuplex Receptacle
Dimensions3.28 in x 1.33 in x 1.05 in
MaterialNylon
Contacts Material0.031 in Brass
Terminal Screws MaterialBrass
Self-grounding Clip MaterialStainless steel
Flammability RatingUL 94V-2
CertificationsUL Listed, CSA Certified, Fed. Spec. WC596, NEMA WD-6 Compliant
Current InterruptingCertified for full rated current
EU RoHS IndicatorYes
ColorRed
StyleFinder Groove Face
ConnectivityBack and Side Wired Screw Terminals
