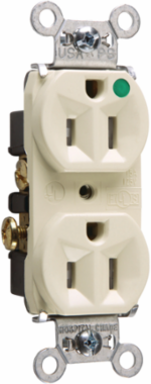

Pass & Seymour TR8200HW 15A 125V Hospital-Grade Tamper-Resistant Duplex Receptacle, Compact, White, 0.78 Inch Depth, 2.635 Inch Height, 1.322 Inch Width
- MPN: TR8200HW
- UPC: 785007035230
- PPN: P-S-TR8200HW
CAD
$21.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15A 125V Hospital-Grade Tamper-Resistant Duplex Receptacle, Compact, White, 0.78 Inch Depth, 2.635 Inch Height, 1.322 Inch Width
Features
- Impact-resistant nylon face.
- Stainless steel mounting screws also resist corrosion.
- Easily accessible break-off line contact connecting tab for split circuit wiring.
- Corrosion-resistant, zinc-plated steel strap is locked in.
- Internal screw-pressure-plate back wire and side wire line terminals accept #14 : #10 AWG copper or copper-clad conductors.
- High strength thermoplastic back body.
- Compact design for easy installation.
- Tri-drive terminal and mounting screws.
- Meets National Electrical Code Tamper-Resistant requirements.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.78 in
- Color
- White
- Width
- 1.322 in
- Country of Origin
- Mexico
- Voltage
- 125.0 V
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- NEMA Configuration Code
- 5-15R
- Wire Connection Type
- Screw Terminals
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
- Features
- Single Piece Plated Steel Mounting Strap
Height2.635 in
FinishMatte
Product LinePass & Seymour
Amperage15.0 A
Number of Wires3.0
Wire Size14 - 10 AWG
Is Tamper-ResistantYes
Outlet TypeHospital Grade
Outlet TypeTamper-Resistant
Application SectorHealthcare
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Wire Connection TypeInternal Pressure Plates
