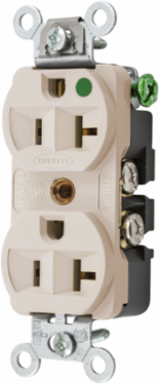

Hubbell Wiring Device-Kellems HBL8300HLA Extra Heavy Duty Duplex Receptacle, 20A 125V, Light Almond, 3-Wire
- MPN: HBL8300HLA
- UPC: 783585147260
- PPN: HBL-HBL8300HLA
CAD
$53.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Compact Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5- 20R, Light Almond, Single Pack.
Features
- Slender/compact design
- Impact-resistant finder groove face
- Triple wipe contacts
Documentation & Downloads
Specifications
Dimensions
- Dimensions
- 3.28 in x 1.33 in x 1.05 in
- Height
- 1.05 in
- Weight
- 0.25 lb
Display SizeSlender/Compact
Length3.28 in
Width1.33 in
Certifications and Compliance
- Nema Rating
- 5-20R
Conductor Related
- Number Of Wires
- 3-Wire
Wire Size#12 AWG to #10 AWG
General
- Application
- Slender/Compact Hospital Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Item Type
- Traditional Duplex
- Material - Mounting Hardware
- Screw Mounting
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Series
- Hospital Grade
- Type
- Receptacle
ColorLight Almond
Horsepower - Maximum1
MaterialThermoplastic
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StyleFinder Groove Face
UPC783585147260
Electrical Ratings
- Amperage Rating
- 20 A
- Current / Amperage Rating
- 20 A
- Dielectric Strength
- Withstands 2,000V minimum
- Voltage Rating
- 125 V
- Wattage
- 2500 W
ConnectivityBack and Side Wired Screw Terminals
Current Rating20 A
PhaseSingle Phase
Voltage Rating Description125 V
Logistics
- Carton Quantity
- 10 EA
