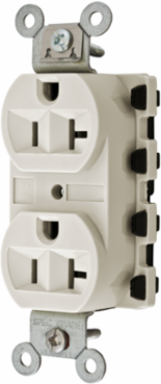

Hubbell Wiring Device-Kellems SNAP5362LAA Extra Heavy Duty Duplex Receptacle 20A 125V 3-Wire Light Almond
Hubbell Wiring Device-Kellems SNAP5362LAA Extra Heavy Duty Duplex Receptacle 20A 125V 3-Wire Light Almond
- MPN: SNAP5362LAA
- UPC: 783585247724
- PPN: HBL-SNAP5362LAA
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$18.74/ EA
Description
Straight Blade Devices, Receptacles, Duplex, SNAPConnect 2, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Light Almond.
Features
- Audible SNAP, indicates solid connection
- Reduces installation time
- Quick Connect- SNAPConnect
- Fully insulated design
Specifications
Specifications
- Application
- Extra Heavy Duty Specification Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Item Type
- Traditional Duplex
- Material - Mounting Hardware
- Screw Mounting
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Series
- Extra Heavy Duty
- Type
- Standard Duplex
- Dimensions
- 3.28 in x 1.56 in x 1.1 in
- Height
- 1.1 in
- Width
- 1.56 in
- Connectivity
- Connectorized
- Current Rating
- 20 A
- Phase
- Single Phase
- Voltage Rating Description
- 125 V
- Number Of Wires
- 3-Wire
- Nema Rating
- 5-20R
ColorLight Almond
Horsepower - Maximum1
MaterialNylon
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StyleFinder Groove Face
UPC783585247724
Display SizeStandard Sized Product
Length3.28 in
Amperage Rating20 A
Current / Amperage Rating20 A
Dielectric StrengthWithstands 2,000V minimum
Voltage Rating125 V
Wattage2500 W
Wire Size#12 AWG
Carton Quantity10 EA
