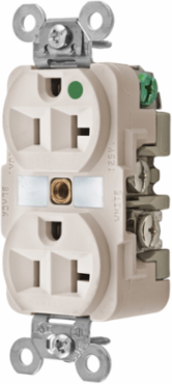

Hubbell Wiring Device-Kellems HBL8300LA Duplex Hospital Grade Receptacle, 2-Pole 3-Wire, 20A 125V, Light Almond
Hubbell Wiring Device-Kellems HBL8300LA Duplex Hospital Grade Receptacle, 2-Pole 3-Wire, 20A 125V, Light Almond
- MPN: HBL8300LA
- UPC: 783585147284
- PPN: HBL-HBL8300LA
- UNSPSC: 39121406
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$90.77/ EA
Description
Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Light Almond, Single Pack.
Features
- Deep body design with circuit ID face
- Patented ground contact provides redundant grounding
- Unique bypass contact design
- Self Grounding
Specifications
Specifications
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.65 in x 1.19 in
- Horsepower - Maximum
- 1
- Length
- 3.28 in
- Amperage Rating
- 20 A
- Color
- Light Almond
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Self Grounding
- Type
- Receptacle
- Wattage
- 2500 W
- Voltage Rating Description
- 125 V
- Width
- 1.65 in
- General Literature Asset 1 Display Text
- Duct Products Guide
- General Literature Asset 3 Display Text
- Healthcare Application Guide
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A040
- Current Rating
- 20 A
- Series
- Hospital Grade
- BOX SIZE
- 3.600x10.000x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585147284
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
Current / Amperage Rating20 A
Height1.19 in
Industry Standard(s)CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-0;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
ApplicationExtra Heavy Duty Hospital Grade
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-20R
Number of Wires3-Wire
Size3.28 in x 1.65 in x 1.19 in
StandardCSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Voltage Rating125 V
Wire Size#12 AWG to #10 AWG
Weight0.25 lb.
Engineering Drawing 1 Display TextHBL8300LA AutoCAD Drawing
General Literature Asset 2 Display TextEducation Application Guide
ConnectivityBack and Side Wired Screw Terminals
Nema Rating5-20R
Number Of Wires3-Wire
StyleFinder Groove Face
Description - InvoiceDUP RCPT, HG, 20A 125V, 5-20R, LA
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack3 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight30.800 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
