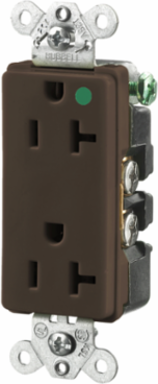

Hubbell Wiring Device-Kellems HBL2182 Hospital Grade Duplex Receptacle, 2-Pole 3-Wire, 20A 125V, Brown
- MPN: HBL2182
- UPC: 783585060644
- PPN: HBL-HBL2182
- UNSPSC: 39121406
CAD
$57.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Brown, Single Pack.
Features
- Aesthetic Style Line® decorator design
- High impact resistant face
- Triple wipe contacts
- Standard, Self Grounding
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.36 in x 1.03 in
- Horsepower - Maximum
- 1
- Length
- 3.28 in
- Amperage Rating
- 20 A
- Color
- Brown
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard, Self Grounding
- Type
- Duplex Receptacle
- Wattage
- 2500 W
- Voltage Rating Description
- 125 V
- Width
- 1.36 in
- General Literature Asset 1 Display Text
- Duct Products Guide
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A040
- Current Rating
- 20 A
- Series
- Hospital Grade
- BOX SIZE
- 3.238x9.178x4.298 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585060644
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating20 A
Height1.03 in
Industry Standard(s)CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - TOP: UL 94 V-2 BASE: UL 94 V-0;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
ApplicationStyle Line Decorator Hospital Grade
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-20R
Number of Wires3-Wire
Size3.28 in x 1.36 in x 1.03 in
StandardCSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Voltage Rating125 VAC
Wire Size#12 AWG to #10 AWG
Weight0.2 lb.
Engineering Drawing 1 Display TextHBL2182 AutoCAD Drawing
ConnectivityBack and Side Wired Screw Terminals
Nema Rating5-20R
Number Of Wires3-Wire
StyleStyle Line Decorator;Smooth Face
Description - InvoiceSTYLE HG DUP RCPT, 20A 125V, 5-20R, BR
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.100 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight20.000 lb.
Lowest Level UOMEach
