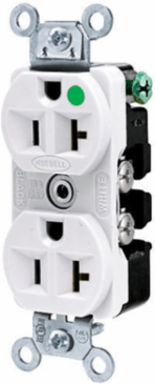

Hubbell Wiring Device-Kellems HBL8300ILW Hospital Grade Duplex Receptacle, 20A 125V, 3-Wire, White
Hubbell Wiring Device-Kellems HBL8300ILW Hospital Grade Duplex Receptacle, 20A 125V, 3-Wire, White
- MPN: HBL8300ILW
- UPC: 783585016511
- PPN: HBL-HBL8300ILW
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$131.72/ EA
Description
Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, White, Single Pack.
Features
- Slender/compact design
- Impact-resistant finder groove face
- Triple wipe contacts
- Entire face illuminated by two LEDs
- Illuminated Face
Specifications
Specifications
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.33 in x 1.05 in
- Horsepower - Maximum
- 1
- Length
- 3.28 in
- Amperage Rating
- 20 A
- Color
- White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Illuminated Face
- Type
- Receptacle
- Wattage
- 2500 W
- Voltage Rating Description
- 125 V
- Width
- 1.33 in
- General Literature Asset 1 Display Text
- Duct Products Guide
- General Literature Asset 3 Display Text
- Hubbell SystemOne 4, 6 and 8 Inch Recessed Fire-Rated Poke-Throughs
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 8300ILW
- Material - Mounting Hardware
- Screw Mounting
- Material
- Polycarbonate
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.4 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 25.800 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Height1.05 in
Industry Standard(s)CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
ApplicationExtra Heavy Duty Hospital Grade
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-20R
Number of Wires3-Wire
Size3.28 in x 1.33 in x 1.05 in
StandardCSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Voltage Rating125 V
Wire Size#12 AWG to #10 AWG
Weight0.2 lb.
Engineering Drawing 1 Display TextHBL8300ILW AutoCAD Drawing
General Literature Asset 2 Display TextHealthcare Product Solutions
ConnectivityBack and Side Wired Screw Terminals
Nema Rating5-20R
Number Of Wires3-Wire
StyleFinder Groove Face
Description - InvoiceDUP RCPT, HG, 20A 125V, 5-20R, IL, WH
Harmonization Code8536698000
MSDS FlagNo
Sub Class CodeA04A040
Current Rating20 A
SeriesHospital Grade
BOX SIZE3.300x9.300x4.300 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585016511
Case - Total Units100 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
