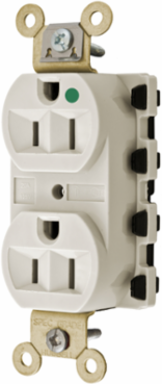

Hospital Grade Receptacle, 15A 125V, 2-Pole 3-Wire, Light Almond
Hubbell Wiring Device-Kellems

Hubbell Wiring Device-Kellems SNAP8200LAA Hospital Grade Receptacle, 15A 125V, 2-Pole 3-Wire, Light Almond

  • MPN: SNAP8200LAA
  • UPC: 783585247564
  • PPN: HBL-SNAP8200LAA

CAD

$28.62

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Straight Blade Devices, Receptacles, Duplex, SNAPConnect 2, Hospital Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Light Almond, Single Pack.

Features

  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Fully insulated design

Documentation & Downloads

Specifications

Dimensions

Dimensions
3.28 in x 1.64 in x 1.1 in
Height
1.1 in
Width
1.64 in
Display SizeStandard Sized Product
Length3.28 in

Certifications and Compliance

Nema Rating
5-15R

Conductor Related

Number Of Conductors
3-Wire Grounding
Wire Size
#12 AWG
Number Of Wires3-Wire

General

Application
Hospital Grade
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Item Type
Finder Groove Face
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Series
Hospital Grade
Type
Standard Duplex
ColorLight Almond
Horsepower - Maximum0.5
MaterialNylon
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StyleFinder Groove Face
UPC783585247564

Electrical Ratings

Amperage Rating
15 A
Current / Amperage Rating
15 A
Dielectric Strength
Withstands 2,000V minimum
Voltage Rating
125 V
Wattage
1875 W
ConnectivityConnectorized
Current Rating15 A
PhaseSingle Phase
Voltage Rating Description125 V

Logistics

Carton Quantity
10 EA
