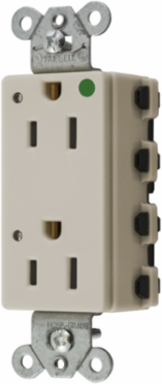

Hubbell Wiring Device-Kellems SNAP2172LAL 15A 125V Hospital Grade Receptacle, 2-Pole 3-Wire, Light Almond
Hubbell Wiring Device-Kellems SNAP2172LAL 15A 125V Hospital Grade Receptacle, 2-Pole 3-Wire, Light Almond
- MPN: SNAP2172LAL
- UPC: 783585248851
- PPN: HBL-SNAP2172LAL
- UNSPSC: 39121406
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$42.55/ EA
Description
Straight Blade Devices, Receptacles, Style Line Decorator, SNAPConnect®, Hospital Grade, LED Indicator, 15A 125V, 2-Pole 3- Wire Grounding, 5-15R, Nylon, Light Almond
Features
- Audible SNAP, indicates solid connection
- Reduces installation time
- Fully insulated design
- Quick Connect- SNAPConnect®, LED Indicator, USA Product
Specifications
Specifications
- Country of Origin
- Mexico
- Dimensions
- 3.28 in x 1.64 in x 1.1 in
- Horsepower - Maximum
- 0.5
- Length
- 3.28 in
- Amperage Rating
- 15 A
- Color
- Light Almond
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Quick Connect- SNAPConnect®, LED Indicator, USA Product
- Type
- Power Indicating LED
- Wattage
- 1875 W
- Voltage Rating Description
- 125 V
- Width
- 1.64 in
- General Literature Asset 1 Display Text
- Duct Products Guide
- General Literature Asset 3 Display Text
- Leaders In Screwless Termination
- Display Size
- Standard Sized Product
- Number Of Conductors
- 3-Wire Grounding
- Number Of Wires
- 3-Wire
- Style
- Style Line Decorator
- Description - Invoice
- SNAP2CONNECT2 DECO HG 15A/125V LED LA
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Current Rating
- 15 A
- Material
- Nylon
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.100 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10
Current / Amperage Rating15 A
Height1.1 in
Industry Standard(s)Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical: Current Interrupting- Certified for current interrupting at full rated current;Electrical: Dielectric Voltage- Withstands 2,000V minimum;Mechanical: Product Identification Ratings are a permanent part of the device;Environmental: Flammability- UL 94V-2;Environmental: Operating Temperature- Maximum continuous 75°C;minimum -40°C (w/o impact)
ApplicationHospital Grade
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-15R
Number of Wires3-Wire
Size3.28 in x 1.64 in x 1.1 in
StandardCertified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Voltage Rating125 V
Wire Size#12 AWG
Weight0.2 lb.
Engineering Drawing 1 Display TextSNAP2172LAL AutoCAD Drawing
General Literature Asset 2 Display TextElectrical Products - Healthcare Solutions
ConnectivityConnectorized
Nema Rating5-15R
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A040
Indicator(s) TypeGreen LED
SeriesSNAPConnect® Series
BOX SIZE3.548x9.858x4.298 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585248851
Case Weight20.000 lb.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
