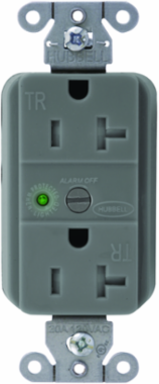

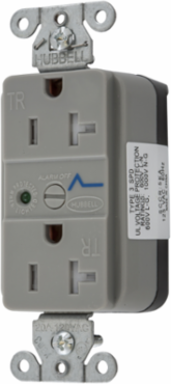

Hubbell Wiring Device-Kellems SNAP5362GYS Surge Protection Receptacle, 20A 125V, 2-Pole, 3-Wire, Nylon, Gray
Hubbell Wiring Device-Kellems SNAP5362GYS Surge Protection Receptacle, 20A 125V, 2-Pole, 3-Wire, Nylon, Gray
- MPN: SNAP5362GYS
- UPC: 783585252094
- PPN: HBL-SNAP5362GYS
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$160.34/ EA
Description
Straight Blade Devices, Receptacles, Duplex, SNAPConnect®, Surge supression, Tamper Resistant, LED Indicator, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Nylon, Gray,
Features
- Audible SNAP, indicates solid connection
- Reduces installation time
- Surge supression, Tamper-Resistant, LED Indicator
- Quick Connect- SNAPConnect®, Tamper Resistant, Surge Supression, LED Indicator
Specifications
Specifications
- Country of Origin
- China
- Dimensions
- 3.28 in x 1.75 in x 1.75 in
- Horsepower - Maximum
- 1
- Length
- 3.28 in
- Amperage Rating
- 20 A
- Color
- Gray
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Quick Connect- SNAPConnect®, Tamper Resistant, Surge Supression, LED Indicator
- Type
- Surge Protection Receptacle
- Wattage
- 2500 W
- Voltage Rating Description
- 125 V
- Width
- 1.75 in
- General Literature Asset 2 Display Text
- SNAPConnect® and EdgeConnect® screwless termination
- Connectivity
- Connectorized
- Nema Rating
- 5-20R
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A44
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A44A420
- Current Rating
- 20 A
- Series
- SNAPConnect® Series
- BOX SIZE
- 4.200x11.100x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585252094
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
Current / Amperage Rating20 A
Height1.75 in
Industry Standard(s)CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186
PerformanceElectrical: Current Interrupting- Certified for current interrupting at full rated current;Electrical: Dielectric Voltage- Withstands 2,000V minimum;Mechanical: Product Identification Ratings are a permanent part of the device;Environmental: Flammability- UL 94V-2;Environmental: Operating Temperature- Maximum continuous 75°C;minimum -40°C (w/o impact)
ApplicationExtra Heavy Duty Specification Grade
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-20R
Number of Wires3-Wire
Size3.28 in x 1.75 in x 1.75 in
StandardCSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186
Voltage Rating125 V
Wire Size#12 AWG
Weight0.2 lb.
General Literature Asset 1 Display TextLeaders In Screwless Termination
General Literature Asset 3 Display TextSpikeShield® Surge Protective Devices
Display SizeStandard Sized Product
Number Of Conductors3-Wire Grounding
Number Of Wires3-Wire
StyleSmooth Face
Description - InvoiceSNAP SPD RCPT, 20A 125V, TR, GRAY
Harmonization Code8537109170
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.8 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight12.500 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
