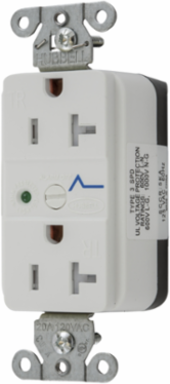

Hubbell Wiring Device-Kellems SNAP5362WS Surge Protective Receptacle, 20A 125V, 2-Pole, 3-Wire, Nylon, White
Hubbell Wiring Device-Kellems SNAP5362WS Surge Protective Receptacle, 20A 125V, 2-Pole, 3-Wire, Nylon, White
- MPN: SNAP5362WS
- UPC: 783585252087
- PPN: HBL-SNAP5362WS
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$151.26/ EA
Description
Straight Blade Devices, Receptacles, Duplex, SNAPConnect®, Surge supression, Tamper Resistant, LED Indicator, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Nylon, White
Features
- Audible SNAP, indicates solid connection
- Reduces installation time
- Surge supression, Tamper-Resistant, LED Indicator
- Quick Connect- SNAPConnect®, Tamper Resistant, Surge Supression, LED Indicator
Specifications
Specifications
- Country of Origin
- CN
- Dimensions
- 3.28 in x 1.75 in x 1.75 in
- Height
- 1.75 in
- Industry Standard(s)
- CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186
- Performance
- Electrical: Current Interrupting- Certified for current interrupting at full rated current;Electrical: Dielectric Voltage- Withstands 2,000V minimum;Mechanical: Product Identification Ratings are a permanent part of the device;Environmental: Flammability- UL 94V-2;Environmental: Operating Temperature- Maximum continuous 75°C;minimum -40°C (w/o impact)
- Application
- Extra Heavy Duty Specification Grade
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- 5-20R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.75 in x 1.75 in
- Standard
- CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186
- Voltage Rating
- 125 V
- Wire Size
- #12 AWG
- Weight
- 0.25 lb.
- Connectivity
- Connectorized
- Nema Rating
- 5-20R
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A44
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A44A420
- Current Rating
- 20 A
- Series
- SNAPConnect® Series
- BOX SIZE
- 4.400x11.000x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585252087
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
Current / Amperage Rating20 A
Each - Width2.300 in
Horsepower - Maximum1
Length3.28 in
Amperage Rating20 A
ColorWhite
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesQuick Connect- SNAPConnect®, Tamper Resistant, Surge Supression, LED Indicator
TypeSurge Protection Receptacle
Wattage2500 W
Voltage Rating Description125 V
Width1.75 in
Display SizeStandard Sized Product
Number Of Conductors3-Wire Grounding
Number Of Wires3-Wire
StyleSmooth Face
Description - InvoiceSNAP SPD RCPT, 20A 125V, TR, WHITE
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.8 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight14.600 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
