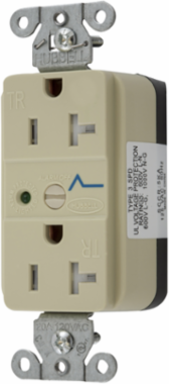

Hubbell Wiring Device-Kellems SNAP5362IS Duplex Surge Protection Receptacle, 20A 125V, 3-Wire Grounding, Ivory
- MPN: SNAP5362IS
- UPC: 783585252070
- PPN: HBL-SNAP5362IS
- UNSPSC: 39121406
CAD
$160.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Devices, Receptacles, Duplex, SNAPConnect®, Surge supression, Tamper Resistant, LED Indicator, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Nylon, Ivory
Features
- Audible SNAP, indicates solid connection
- Reduces installation time
- Surge supression, Tamper-Resistant, LED Indicator
- Quick Connect- SNAPConnect®, Tamper Resistant, Surge Supression, LED Indicator
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Dimensions | 3.28 in x 1.75 in x 1.75 in |
| Horsepower - Maximum | 1 |
| Length | 3.28 in |
| Amperage Rating | 20 A |
| Color | Ivory |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Special Features | Quick Connect- SNAPConnect®, Tamper Resistant, Surge Supression, LED Indicator |
| Type | Surge Protection Receptacle |
| Wattage | 2500 W |
| Voltage Rating Description | 125 V |
| Width | 1.75 in |
| General Literature Asset 2 Display Text | SNAPConnect® and EdgeConnect® screwless termination |
| Connectivity | Connectorized |
| Nema Rating | 5-20R |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Class Code | A44 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A44A420 |
| Current Rating | 20 A |
| Series | SNAPConnect® Series |
| BOX SIZE | 4.200x11.000x4.600 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585252070 |
| Case - Total Units | 50 EA |
| Each - Pack Description | Each |
| NAICS Code | 335999E509 |
| Current / Amperage Rating | 20 A |
|---|---|
| Height | 1.75 in |
| Industry Standard(s) | CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186 |
| Performance | Electrical: Current Interrupting- Certified for current interrupting at full rated current;Electrical: Dielectric Voltage- Withstands 2,000V minimum;Mechanical: Product Identification Ratings are a permanent part of the device;Environmental: Flammability- UL 94V-2;Environmental: Operating Temperature- Maximum continuous 75°C;minimum -40°C (w/o impact) |
| Application | Extra Heavy Duty Specification Grade |
| Dielectric Strength | Withstands 2,000V minimum |
| NEMA Rating | 5-20R |
| Number of Wires | 3-Wire |
| Size | 3.28 in x 1.75 in x 1.75 in |
| Standard | CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186 |
| Voltage Rating | 125 V |
| Wire Size | #12 AWG |
| Weight | 0.25 lb. |
| General Literature Asset 1 Display Text | Leaders In Screwless Termination |
| General Literature Asset 3 Display Text | SpikeShield® Surge Protective Devices |
| Display Size | Standard Sized Product |
| Number Of Conductors | 3-Wire Grounding |
| Number Of Wires | 3-Wire |
| Style | Smooth Face |
| Description - Invoice | SNAP SPD RCPT, 20A 125V, TR, IVORY |
| Harmonization Code | 8537109170 |
| MSDS Flag | No |
| Material - Mounting Hardware | Screw Mounting |
| Material | Nylon |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 2.8 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 12.500 lb. |
| Lowest Level UOM | Each |
