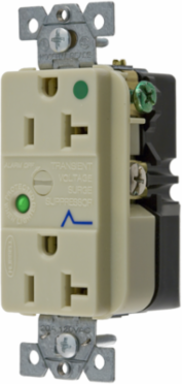

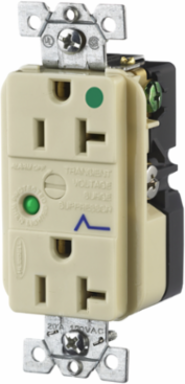

Hubbell Wiring Device-Kellems HBL8362ISA SPIKESHIELD Hospital Grade Surge Receptacle, Duplex, 20A 125V, Ivory
- MPN: HBL8362ISA
- UPC: 783585060514
- PPN: HBL-HBL8362ISA
- UNSPSC: 39121610
CAD
$264.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Surge Protective Devices, SPIKESHIELD Hospital Grade Surge Suppression Receptacle, Duplex, 20A 125V, 5-20R, Ivory
Features
- High-impact nylon face resists breakage
- Automatic grounding clip attached to bridge
- Power-on indicator light verifies instantly that power is available
- Distinctive surge symbol for visual identification of surge suppression receptacle
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Current / Amperage Rating | 20 A |
| Industry Standard(s) | CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498 Receptacles;UL Listed File E2186 |
| Amperage Rating | 20 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Operating Temperature | 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C) |
| Phase | Single Phase |
| Special Features | Standard Product |
| Type | Duplex |
| Voltage Rating Description | 125 V |
| Engineering Drawing 1 Display Text | HBL8362ISA AutoCAD Drawing |
| General Literature Asset 2 Display Text | SpikeShield® Surge Protective Devices |
| Display Size | Standard |
| Class Code | A44 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 8300HIS;8362IS;HBL8362IS |
| Material - Mounting Hardware | Mounting Screws |
| Indicator(s) Type | LED and Audible Alarm |
| Series | Hospital Grade |
| BOX SIZE | 4.300x10.900x4.500 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585060514 |
| Case - Total Units | 50 EA |
| Each - Pack Description | Each |
| NAICS Code | 335999E509 |
| Color | Ivory |
|---|---|
| Width | 2.100 in |
| Performance | Electrical - Frequency - 60Hz;Electrical - Protection Modes - Normal and Common Modes;Electrical - Response Time - Approximately 5 ns;Electrical - Transient Suppression - Peak Energy (10 X 100 µs) Peak Current (8 X 20 µs);Electrical - Voltage - 120V AC + 10% - 15%;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C) |
| Application | Decorator Duplex with Light and Alarm |
| Frequency Rating | 60 Hz |
| Outlet | Straight Blade |
| Response Time | 5 |
| Standard | CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498 Receptacles;UL Listed File E2186 |
| Voltage Rating | 125 V |
| Weight | 0.3 lb. |
| General Literature Asset 1 Display Text | Duct Products Guide |
| Connectivity | Terminal Screws |
| Nema Rating | 5-20R |
| Description - Invoice | DUP SPD RCPT, HG, 20A 125V, 5-20R, IV |
| Harmonization Code | 8536308000 |
| MSDS Flag | No |
| Sub Class Code | A44A420 |
| Current Rating | 20 A |
| Material | Composite |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 3.050 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 16.450 lb. |
| Lowest Level UOM | Each |
