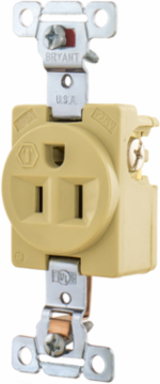

Bryant 5251I Commercial Grade Single Receptacle, 2-Pole 3-Wire, 15A 125V, Ivory
Bryant 5251I Commercial Grade Single Receptacle, 2-Pole 3-Wire, 15A 125V, Ivory
- MPN: 5251I
- UPC: 781786174047
- PPN: HBL-5251I
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$26.37/ EA
Description
Straight Blade Devices, Receptacles, Single, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, Side Wired, 15A 125V, 5-15R, Ivory, Single Pack
Features
- Single
- Commercial/Industrial Grade
- 2-Pole 3-Wire Grounding
- Side Wired
- 15A 125V
- Standard Product
Specifications
Specifications
- Country of Origin
- US
- Width
- 3.000 in
- Amperage Rating
- 20 A
- Color
- Ivory
- NEMA Rating
- 5-15R
- Number of Wires
- 3-Wire
- Special Features
- Standard Product
- Voltage Rating
- 125 V
- Wire Size
- #14 AWG to #12 AWG
- Weight
- 0.1 lb.
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- Finder Groove Face
- Description - Invoice
- SLG RCPT, IND GRD, 15A 125V, 5-15R, IV
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Sub Class Code
- A04A020
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.450 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 10.000 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating15 A
Each - Width3.000 in
ApplicationExtra Heavy Duty Compact Industrial Specification Grade
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
TypeSingle Receptacle
Wattage1875
Voltage Rating Description125 V
ConnectivitySide Wired Only
Nema Rating5-15R
Number Of Wires3-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replacement Catalog NumberHBL5251I
Material - Mounting HardwareScrew Mounting
SeriesHeavy Duty
BOX SIZE2.548x8.418x4.918 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786174047
Case - Total Units100 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
