Bryant

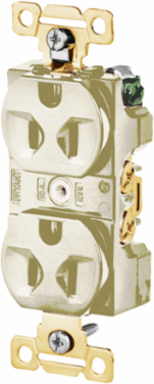

Bryant 5242I Duplex Receptacle, Commercial Grade, 15A 125V, 2-Pole 3-Wire, Ivory

Duplex Receptacle, Commercial Grade, 15A 125V, 2-Pole 3-Wire, Ivory
  • MPN: 5242I
  • UPC: 781786624801
  • PPN: HBL-5242I
  • UNSPSC: 39121406

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$25.45/ EA

Description

Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, Side Wired, 15A 125V, 5-15R, Ivory, Single Pack

Features

  • Duplex
  • Commercial/Industrial Grade
  • 2-Pole 3-Wire Grounding
  • Side Wired
  • 15A 125V
  • Standard Product

Specifications

Specifications

Country of Origin
CN
Width
1.400 in
Amperage Rating
15 A
Color
Ivory
NEMA Rating
5-15R
Number of Wires
3-Wire
Special Features
Standard Product
Voltage Rating
125 V
Wire Size
#14 AWG to #12 AWG
Weight
0.2 lb.
Display Size
Standard Sized Product
Number Of Poles
2-Pole
Style
Finder Groove Face
Description - Invoice
DUP RCPT, INT GRD, 15A 125V, 5-15R, IV
Harmonization Code
8536698000
MSDS Flag
No
Sub Class Code
A04A020
Current Rating
15 A
Base Unit of Measure
EA
Carton - Gross Weight per Pack
2.1 lb.
Carton - Pack Description
Carton
Carton - Total Units
10 EA
Case Weight
20.000 lb.
Lowest Level UOM
Each
Current / Amperage Rating15 A
Each - Width1.400 in
ApplicationExtra Heavy Duty Compact Industrial Specification Grade
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
TypeDuplex Receptacle
Wattage1875
Voltage Rating Description125 V
ConnectivitySide Wired Only
Nema Rating5-15R
Number Of Wires3-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replacement Catalog NumberHBL5242I
Material - Mounting HardwareScrew Mounting
SeriesHeavy Duty
BOX SIZE2.548x8.418x4.918 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786624801
Case - Total Units100 EA
Each - Pack DescriptionEach

Certifications

EU RoHS Indicator
Yes
