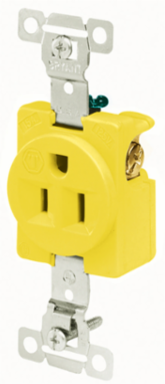

Bryant 5261CR Industrial Receptacle, 2-Pole 3-Wire, 15A 125V, Corrosion Resistant, Yellow
Bryant 5261CR Industrial Receptacle, 2-Pole 3-Wire, 15A 125V, Corrosion Resistant, Yellow
- MPN: 5261CR
- UPC: 781786659308
- PPN: HBL-5261CR
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$85.95/ EA
Description
Straight Blade Devices, Receptacles, Single, Corrosion Resistant, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Yellow, Single Pack
Features
- Single
- Corrosion Resistant
- Commercial/Industrial Grade
- 2-Pole 3-Wire Grounding
- 15A 125V
Specifications
Specifications
- Country of Origin
- PR
- Dimensions
- 3.28 in x 1.38 in x 0.91 in
- Height
- 0.91 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial Specification Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Corrosion Resistant
- Voltage Rating
- 125 V
- Wire Size
- #14 AWG to #12 AWG
- Weight
- 0.15 lb.
- Connectivity
- Back and Side Wired
- Nema Rating
- 5-15R
- Number Of Wires
- 3-Wire
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A020
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 5.000 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating15 A
Each - Width1.800 in
Length3.28 in
Amperage Rating15 A
ColorYellow
NEMA Rating5-15R
Number of Wires3-Wire
Size3.28 in x 1.38 in x 0.91 in
TypeSingle Receptacle
Wattage1875
Voltage Rating Description125 V
Width1.38 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleFinder Groove Face
Description - InvoiceSGL CM RCPT, IND GRD, 15A 125V, 5-15R,YL
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
SeriesExtra Heavy Duty
BOX SIZE2.548x8.418x4.918 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786659308
Case - Total Units100 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
