Bryant

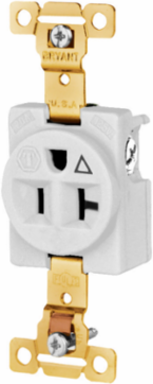

Bryant 5361IGWWR Commercial Grade Receptacle, 2-Pole 3-Wire, 20A 125V, Isolated Ground, Weather Resistant

Commercial Grade Receptacle, 2-Pole 3-Wire, 20A 125V, Isolated Ground, Weather Resistant
  • MPN: 5361IGWWR
  • UPC: 781786670495
  • PPN: HBL-5361IGWWR
  • UNSPSC: 39121406

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$87.68/ EA

Description

Straight Blade Devices, Receptacles, Single, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, Isolated Ground, Weather Resistant, 20A 125V, 5- 20R, White, Single Pack

Features

  • Single
  • Commercial/Industrial Grade
  • 2-Pole 3-Wire Grounding
  • Isolated Ground
  • Weather Resistant
  • Isolated Ground and Weather Resistant

Specifications

Specifications

Country of Origin
Puerto Rico
Dimensions
3.28 in x 1.38 in x 0.91 in
Length
3.28 in
Application
Extra Heavy Duty Industrial Specification Grade
Environmental Conditions
Weather Resistant
Number of Poles
2-Pole
Phase
Single Phase
Special Features
Isolated Ground and Weather Resistant
Voltage Rating
125 V
Wire Size
#14 AWG to #12 AWG
Weight
0.1 lb.
Connectivity
Back and Side Wired
Nema Rating
5-20R
Number Of Wires
3-Wire
Class Code
A04
Freight Class Code
06168002
Image Actual Or Representative
A
Sub Class Code
A04A060
Current Rating
20 A
Base Unit of Measure
EA
Carton - Gross Weight per Pack
0.000 lb.
Carton - Pack Description
Carton
Carton - Total Units
10
Lowest Level UOM
Each
Current / Amperage Rating20 A
Height0.91 in
Amperage Rating20 A
ColorWhite
NEMA Rating5-20R
Number of Wires3-Wire
Size3.28 in x 1.38 in x 0.91 in
TypeSingle Receptacle
Wattage2500
Voltage Rating Description125 V
Width1.38 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleFinder Groove Face
Description - InvoiceWR RCPT, SING, SB, IG, IND, 20A 125V, WH
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
SeriesExtra Heavy Duty
BOX SIZE2.548x8.418x4.918 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786670495
Each - Pack DescriptionEach

Certifications

EU RoHS Indicator
No
