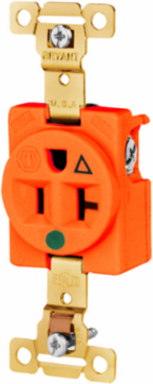

Bryant 8310IG Hospital Grade Receptacle, 20A 125V, 2-Pole 3-Wire, Orange, 3.28 x 1.38 x 0.91 Inch
- MPN: 8310IG
- UPC: 781786731356
- PPN: HBL-8310IG
- UNSPSC: 39121406
CAD
$96.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Single, Hospital Grade, 20A 125V, 2-Pole 3-Wire Grounding, Back and Side Wired, 5-20R, Orange, Single Pack
Features
- Single
- Hospital Grade
- 20A 125V
- 2-Pole 3-Wire Grounding
- Back and Side Wired
- Isolated Ground
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Dimensions
- 3.28 in x 1.38 in x 0.91 in
- Length
- 3.28 in
- Application
- Hospital Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Isolated Ground
- Voltage Rating
- 125 V
- Wire Size
- #14 AWG to #12 AWG
- Weight
- 0.1 lb.
- Connectivity
- Back and Side Wired
- Nema Rating
- 5-20R
- Number Of Wires
- 3-Wire
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A040
- Current Rating
- 20 A
- Series
- Hospital Grade
- BOX SIZE
- 2.548x8.418x4.918 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786731356
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
Current / Amperage Rating20 A
Height0.91 in
Amperage Rating20 A
ColorOrange
NEMA Rating5-20R
Number of Wires3-Wire
Size3.28 in x 1.38 in x 0.91 in
TypeSingle Receptacle
Wattage2500
Voltage Rating Description125 V
Width1.38 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleFinder Groove Face
Description - InvoiceSGL RCPT, IG, HG, 20A 125V, 5-15R, OR
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.700 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight10.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
