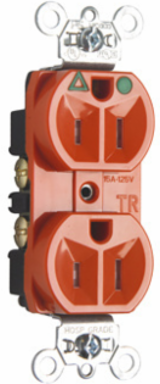

Pass & Seymour TRIG8200 Tamper-Resistant Hospital Grade Receptacle 15A 125V Orange 2-5/8 Inch x 1-3/16 Inch x 1-1/4 Inch
- MPN: TRIG8200
- UPC: 785007012453
- PPN: P-S-TRIG8200
CAD
$50.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Tamper-Resistant Hospital Grade Receptacle 15A 125V Orange 2-5/8 Inch x 1-3/16 Inch x 1-1/4 Inch
Features
- Dual mechanical shutter system to help prevent insertion of foreign objects.
- Auto-ground clip assures positive ground.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
- Backed-out tri-drive brass terminal screws for faster installation.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for additional wiring flexibility.
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
- .032 inch thick brass triple-wipe power contacts.
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.25 in
- Special Features
- Dual mechanical shutter system to help prevent insertion of foreign objects. IG symbol and Isolated Ground markings for easy identification and circuit delineation. Auto-ground clip assures positive ground. Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring. Backed-out tri-drive brass terminal screws for faster installation. Internal screw-pressure-plate back and side wire capability. Two back wire holes for additional wiring flexibility. Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly. .032 inch thick brass triple-wipe power contacts. Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
- Width
- 1.187 in
- Voltage
- 125.0 V
- Number of Wires
- 3.0
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- Connection Location
- Back and Side
- Product Line
- Pass & Seymour
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Dielectric Strength
- Withstands 2000V minimum
- Features
- Single Piece Plated Steel Mounting Strap
Height2.625 in
Amperage15.0 A
Country of OriginMexico
StandardFEDSPEC
StandardcULus UL498
Wire Size14 - 10 AWG
Is Tamper-ResistantYes
Outlet TypeHospital Grade
Outlet TypeIsolated Ground
NEMA Configuration Code5-15R
ColorOrange
Wire Connection TypeScrew Terminals
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
Environmental ConditionsFlammability: UL94 V2
