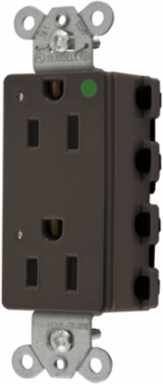

Hubbell Wiring Device-Kellems SNAP2172L Hospital Grade Receptacle, 15A 125V, 2-Pole 3-Wire, Brown, LED Indicator
Hubbell Wiring Device-Kellems SNAP2172L Hospital Grade Receptacle, 15A 125V, 2-Pole 3-Wire, Brown, LED Indicator
- MPN: SNAP2172L
- UPC: 783585248790
- PPN: HBL-SNAP2172L
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$41.31/ EA
Description
Straight Blade Devices, Receptacles, Style Line Decorator, SNAPConnect®, Hospital Grade, LED Indicator, 15A 125V, 2-Pole 3- Wire Grounding, 5-15R, Nylon, Brown
Features
- Self-grounding clip makes installation ease
- Audible SNAP, indicates solid connection
- Reduces installation time
- Fully insulated design
- Quick Connect- SNAPConnect®, LED Indicator, USA Product
Specifications
Specifications
- Country of Origin
- MX
- Dimensions
- 3.28 in x 1.64 in x 1.1 in
- Height
- 1.1 in
- Industry Standard(s)
- Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Performance
- Electrical: Current Interrupting- Certified for current interrupting at full rated current;Electrical: Dielectric Voltage- Withstands 2,000V minimum;Mechanical: Product Identification Ratings are a permanent part of the device;Environmental: Flammability- UL 94V-2;Environmental: Operating Temperature- Maximum continuous 75°C;minimum -40°C (w/o impact)
- Application
- Hospital Grade
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- 5-15R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.64 in x 1.1 in
- Standard
- Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Voltage Rating
- 125 V
- Wire Size
- #12 AWG
- Weight
- 0.2 lb.
- Connectivity
- Connectorized
- Nema Rating
- 5-15R
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A040
- Indicator(s) Type
- Green LED
- Series
- SNAPConnect® Series
- BOX SIZE
- 3.548x9.858x4.298 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585248790
- Case Weight
- 20.000 lb.
Current / Amperage Rating15 A
Each - Width1.910 in
Horsepower - Maximum0.5
Length3.28 in
Amperage Rating15 A
ColorBrown
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesQuick Connect- SNAPConnect®, LED Indicator, USA Product
TypePower Indicating LED
Wattage1875 W
Voltage Rating Description125 V
Width1.64 in
Display SizeStandard Sized Product
Number Of Conductors3-Wire Grounding
Number Of Wires3-Wire
StyleStyle Line Decorator
Description - InvoiceSNAP2CONNECT2 DECO HG 15A/125V LED BR
Harmonization Code8536698000
MSDS FlagNo
Current Rating15 A
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.100 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Certifications
- EU RoHS Indicator
- Contact Manufacturer
