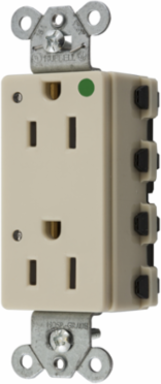

Hubbell Wiring Device-Kellems SNAP2172IL Hospital Grade Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, Nylon, LED Indicator
- MPN: SNAP2172IL
- UPC: 783585248806
- PPN: HBL-SNAP2172IL
- UNSPSC: 39121406
CAD
$42.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Receptacles, Style Line Decorator, SNAPConnect®, Hospital Grade, LED Indicator, 15A 125V, 2-Pole 3- Wire Grounding, 5-15R, Nylon, Ivory
Features
- Audible SNAP, indicates solid connection
- Reduces installation time
- Fully insulated design
- Quick Connect- SNAPConnect®, LED Indicator, USA Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.64 in x 1.1 in
- Horsepower - Maximum
- 0.5
- Length
- 3.28 in
- Amperage Rating
- 15 A
- Color
- Ivory
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Quick Connect- SNAPConnect®, LED Indicator, USA Product
- Type
- Power Indicating LED
- Wattage
- 1875 W
- Voltage Rating Description
- 125 V
- Width
- 1.64 in
- General Literature Asset 1 Display Text
- Duct Products Guide
- General Literature Asset 3 Display Text
- Leaders In Screwless Termination
- Display Size
- Standard Sized Product
- Number Of Conductors
- 3-Wire Grounding
- Number Of Wires
- 3-Wire
- Style
- Style Line Decorator
- Description - Invoice
- SNAP2CONNECT2 DECO HG 15A/125V LED IV
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Current Rating
- 15 A
- Series
- SNAPConnect® Series
- BOX SIZE
- 3.548x9.858x4.298 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585248806
- Case - Total Units
- 100 EA
- NAICS Code
- 335931A102
Current / Amperage Rating15 A
Height1.1 in
Industry Standard(s)Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical: Current Interrupting- Certified for current interrupting at full rated current;Electrical: Dielectric Voltage- Withstands 2,000V minimum;Mechanical: Product Identification Ratings are a permanent part of the device;Environmental: Flammability- UL 94V-2;Environmental: Operating Temperature- Maximum continuous 75°C;minimum -40°C (w/o impact)
ApplicationHospital Grade
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-15R
Number of Wires3-Wire
Size3.28 in x 1.64 in x 1.1 in
StandardCertified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Voltage Rating125 V
Wire Size#12 AWG
Weight0.2 lb.
Engineering Drawing 1 Display TextSNAP2172IL AutoCAD Drawing
General Literature Asset 2 Display TextElectrical Products - Healthcare Solutions
ConnectivityConnectorized
Nema Rating5-15R
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A040
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.400 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight20.000 lb.
