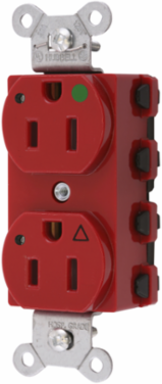

Hubbell Wiring Device-Kellems SNAP8200RIGL Duplex Hospital Grade Receptacle, 15A 125V, 2-Pole, Isolated Ground, LED Indicator
Hubbell Wiring Device-Kellems SNAP8200RIGL Duplex Hospital Grade Receptacle, 15A 125V, 2-Pole, Isolated Ground, LED Indicator
- MPN: SNAP8200RIGL
- UPC: 783585193700
- PPN: HBL-SNAP8200RIGL
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$45.95/ EA
Description
Straight Blade Devices, Receptacles, Duplex, SNAPConnect®, Hospital Grade, Isolated Ground, LED Indicator, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Nylon, Red
Features
- Audible SNAP, indicates solid connection
- Reduces installation time
- Isolated Ground, LED Indicator
- Quick Connect- SNAPConnect®, Isolated Ground, LED Indicator
Specifications
Specifications
- Country of Origin
- CN
- Dimensions
- 3.28 in x 1.64 in x 1.1 in
- Height
- 1.1 in
- Industry Standard(s)
- CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Performance
- Electrical: Current Interrupting- Certified for current interrupting at full rated current;Electrical: Dielectric Voltage- Withstands 2,000V minimum;Mechanical: Product Identification Ratings are a permanent part of the device;Environmental: Flammability- UL 94V-2;Environmental: Operating Temperature- Maximum continuous 75°C;minimum -40°C (w/o impact)
- Application
- Hospital Grade
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- 5-15R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.64 in x 1.1 in
- Standard
- CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Voltage Rating
- 125 V
- Wire Size
- #12 AWG
- Weight
- 0.2 lb.
- Connectivity
- Connectorized
- Nema Rating
- 5-15R
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A040
- Current Rating
- 15 A
- Material
- Nylon
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
Current / Amperage Rating15 A
Each - Width1.910 in
Horsepower - Maximum0.5
Length3.28 in
Amperage Rating15 A
ColorRed
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesQuick Connect- SNAPConnect®, Isolated Ground, LED Indicator
TypePower Indicating LED
Wattage1875 W
Voltage Rating Description125 V
Width1.64 in
Display SizeStandard Sized Product
Number Of Conductors3-Wire Grounding
Number Of Wires3-Wire
StyleSmooth Face
Description - InvoiceSNAP2CONNECT DPLX HG 15A/125V IG LED RD
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
Indicator(s) TypeGreen LED
SeriesSNAPConnect® Series
BOX SIZE3.548x9.858x4.298 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585193700
Case Weight20.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
