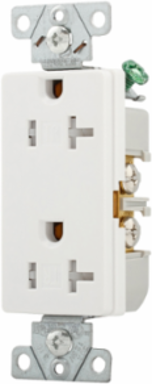

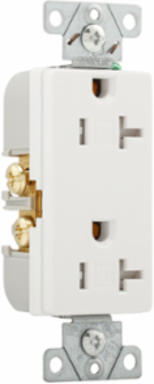

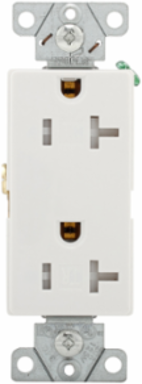

Cooper Wiring Devices TR6352W-BOX Decorator Duplex Receptacle, Tamper Resistant, 20A, 125V, 5-20R, White
- MPN: TR6352W-BOX
- UPC: 032664668609
- PPN: COW-TR6352W-BOX
CAD
$5.89
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Eaton heavy-duty industrial specification grade decorator duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Back and side, White, Brass, Impact-resistant thermoplastic face and back body, 5-20R, Duplex, Screw, PVC, ED Box
Documentation & Downloads
Specifications
Key Specifications
| Amperage Rating | 20A |
|---|---|
| NEMA Configuration | 5-20R |
| Number of Poles | Two-pole |
| Allowable Wire Size | #10-14 AWG, Copper or Copper Clad Aluminum |
| Mounting Method | Flush |
| Contact Material | Brass |
| Color | White |
| Style Type | Decorator |
| Application | Commercial |
| Voltage Rating | 125V |
|---|---|
| Torque Rating | 14 lbf-inch |
| Number of Wires | 3 |
| Wiring Method | Back and side |
| Connection Type | Screw |
| Face/Body Material | Impact-resistant thermoplastic |
| Device Grade | Heavy-duty industrial specification grade |
| Receptacle Type | Duplex |
