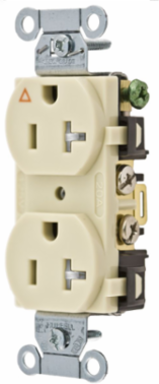

Hubbell Wiring Device-Kellems IG5352ITR Tamper Resistant Duplex Receptacle, Isolated Ground, 20A 125V, Ivory
- MPN: IG5352ITR
- UPC: 783585540054
- PPN: HBL-IG5352ITR
- UNSPSC: 39121406
CAD
$43.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Tamper Resistant Duplex Receptacle, Isolated Ground, Commercial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Back and Side Wired, Ivory, Single Pack
Features
- Triangle marking on face indicates isolated ground
- Tamper-Resistant
- Smooth Face
- Wrap-around galvanized steel strap
- Isolated Ground and Tamper Resistant
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 3.28 in x 1.57 in x 1.07 in
- Horsepower - Maximum
- 1
- Length
- 3.28 in
- Amperage Rating
- 20 A
- Color
- Ivory
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Isolated Ground and Tamper Resistant
- Type
- Isolated Ground
- Wattage
- 2500 W
- Voltage Rating Description
- 125 V
- Width
- 1.57 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact °C
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A060
- Current Rating
- 20 A
- Series
- Hubbell-PRO
- BOX SIZE
- 2.500x8.100x4.300 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585540054
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating20 A
Height1.07 in
Industry Standard(s)Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
ApplicationHubbell-Pro Heavy Duty Specification Grade
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-20R
Number of Wires3-Wire
Size3.28 in x 1.57 in x 1.07 in
StandardCertified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Voltage Rating125 V
Wire Size#12 AWG to #10 AWG
Weight0.25 lb.
ConnectivityBack and Side Wired Screw Terminals
Nema Rating5-20R
Number Of Wires3-Wire
StyleSmooth Face
Description - InvoiceCOMM 20A SIDE & BACK WIRED IG TR IV
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight20.550 lb.
Lowest Level UOMEach
