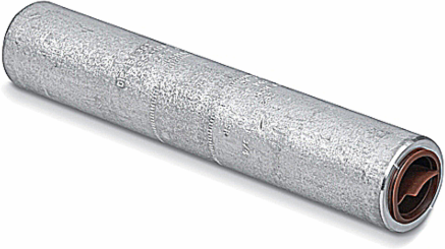

Blackburn AC 2/0 TN Tin-Plated Aluminum Straight Compression Splice for 2/0 Conductors, 3-11/16 Inch Long
Blackburn AC 2/0 TN Tin-Plated Aluminum Straight Compression Splice for 2/0 Conductors, 3-11/16 Inch Long
- MPN: AC 2/0 TN
- PPN: T-B-AC 2/0 TN
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$61.83/ EA
Description
Tin-Plated Aluminum Compression Splice for Aluminum and Copper, 2/0 Stranded
Features
- Made of Aluminum for High Strength and High Conductivity.
- Solid Center Stop Ensures Proper Cable Insertion.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- All Splices Marked with Conductor Size and Die Reference for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications. All Tin-Plated Splices are UL Listed.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121449 Wire or cable compression splice
- Brand Name
- Blackburn
- Special Features
- Dual Rated for Aluminum or Copper Conductors. Prefilled with Oxide Inhibiting Compound.
- Standard
- ANSI C119.4
- Connection
- Compression/Crimp
- Number Of Conductors
- 2
- Finish
- Tin-Plated
IGCC4669 Wire or cable compression splice
TypeStraight Compression Splice
ApplicationCable Splice
Size3-11/16 inch long
Conductor RangeConcentric 2/0
MaterialAluminum
InsulationNone
Packaging
- Inner Quantity
- 50
- Outer Dimensions (inches)
- 1x1x1
Outer Quantity200
Weight Uom1 lbs. Each
