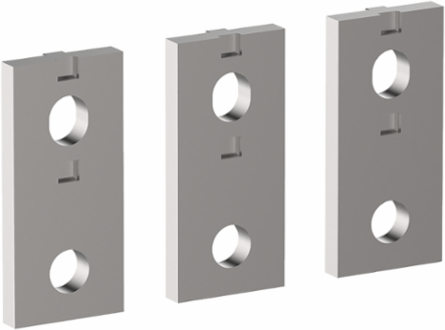

Schneider Electric LA9G3602 TeSys Giga 3 Pole Straight Terminal Extension, 500A Rating, 37.5mm Height
- MPN: LA9G3602
- PPN: SCH-LA9G3602
CAD
$167.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These accessories are straight terminal extension bars for Tesys Giga 265-500 contactor. It is used to 3 Poles electrical circuit. These terminal extensions can be attached to the standard terminals. The rated current is up to 500 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Documentation & Downloads
Specifications
Key Specifications
- Range Compatibility
- TeSys LC1G || TeSys LR9G
- Product Or Component Type
- terminal extension
- Quantity Per Set
- set of 3
Accessory / Separate Part Categoryconnection accessories
Poles Description3P
Device Short NameLA9G
Complementary
- Height
- 37.5 mm
- Width
- 3 mm
- Product Compatibility
- LC1G265...500 || LC1G300...475 || LR9G500
Net Weight0.28 kg
Depth30 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2105013
- Pvc Free
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2105013
Halogen Content PerformanceHalogen free plastic parts product
Environment
- Ambient Air Temperature For Operation
- -40-60 °C
- Pollution Degree
- 3 IEC 60947-1
- Operating Altitude
- 3000 m without derating || 5000 m with derating factor
StandardsEN/IEC 60947-1 || UL 60947-1 || CSA C22.2 No 60947-1 || GB/T 14048
Ambient Air Temperature For Storage-60-80 °C
