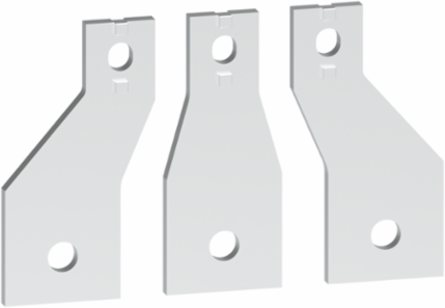

Schneider Electric LA9G3613 TeSys Giga Terminal Extension, 3 Pole, 50 mm Width, 500 A Rated Current
- MPN: LA9G3613
- PPN: SCH-LA9G3613
CAD
$107.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These accessories are straight terminal extension for TeSys Giga 400-500 contactor, 50mm wide connection. It is used to 3 Poles electrical circuit. They are screwed to the contactor terminals to increase the pitch for 50mm wide poles. The rated current is up to 500 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Documentation & Downloads
Specifications
Key Specifications
- Range Compatibility
- TeSys LC1G || TeSys LR9G
- Product Or Component Type
- terminal extension
- Quantity Per Set
- set of 3
Accessory / Separate Part Categoryconnection accessories
Poles Description3P
Device Short NameLA9G
Complementary
- Height
- 85 mm
- Net Weight
- 0.77 kg
- Depth
- 30 mm
Connection Pitch50 mm
Width3 mm
Product CompatibilityLC1G400...500
Environment
- Product Certifications
- cULus
- Standards
- EN/IEC 60947-1 || UL 60947-1 || CSA C22.2 No 60947-1 || GB/T 14048
- Pollution Degree
- 3 IEC 60947-1
- Operating Altitude
- 3000 m without derating || 5000 m with derating factor
Ambient Air Temperature For Operation-40-60 °C
Ip Degree Of ProtectionIP20IEC 60529
Ambient Air Temperature For Storage-60-80 °C
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2105013
- Pvc Free
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2105013
Halogen Content PerformanceHalogen free plastic parts product
