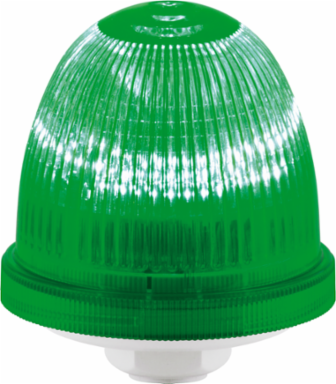

Federal Signal LP22LED-012-024G StreamLine LED Light, Low Profile, UL and cUL, 12-24VAC/DC, Green
- MPN: LP22LED-012-024G
- UPC: 782979235798
- PPN: FDS-LP22LED-012-024G
- UNSPSC: 39111706
CAD
$296.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Model LP22LED is a multi-pattern LED light ideal for applications requiring low-profile signaling. The unit can be surface, panel, or 1/2-inch NPT pipe mounted through the integrated pipe mount. The enclosure offers a self-extinguishing polycarbonate housing that protects against vibrations, dust, and atmospheric elements, and is rated Type 4X.The LP22LED has four flash patterns (steady light, single flash, double flash, and triple flash) selectable via DIP switch.
Features
- Available in 12-24 Vac/dc and 90-240 Vac
- 1/2-inch NPT pipe, surface or panel mount
- Four flash patterns
- Five lamp/lens colors: Amber, Blue, Clear, Green and Red
- Self-extinguishing polycarbonate housing
- Type 4X, IP66 Enclosure
- CE and UKCA compliant
- UL and cUL Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Weight
- 0.22 lbs
- Certification Listing
- CE, UL, cUL
- Flash Pattern Type
- 1x Flash, 2X Flash, 3x Flash, or Steady
- Availability
- In Stock - Ships in 2 Bus Days
- Mount Type
- 1/2-Inch NPT Pipe, Flush
- Operating Temp.
- -22˚ to +122˚F (-30˚ to +50˚C)
- Visual Signals Lens Color
- Green
- Environmental Rating
- Ordinary Location
- Lead Time
- In Stock - Ships in 2 Bus Days
Height3.39 in
Body ColorWhite
Diameter2.99 in (75.946 mm)
Flashes Per Minute120, 90 FPM, 140 FPM, Steady
Lens ColorGreen
Operating Current Amps0.18
Operating Voltage12-24 Vac/dc
Visual Signals Operating Voltage12-24VAC/DC
Enclosure RatingIP66, Type 4X
Product Life Cycle StatusCompleted
