Documentation & Downloads
Federal Signal LP22LED-012-024R StreamLine LED Light, Low Profile, UL and cUL, 12-24VAC/DC, Red
- MPN: LP22LED-012-024R
- UPC: 782979235781
- PPN: FDS-LP22LED-012-024R
- UNSPSC: 39111706
CAD
$296.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

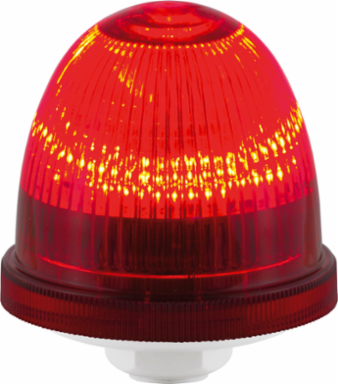

Model LP22LED is a multi-pattern LED light ideal for applications requiring low profile signaling. The unit can be surface, panel or 1/2" NPT pipe mounted through the integrated pipe mount. The enclosure offers a self-extinguishing polycarbonate housing that protects against vibrations, dust, and atmospheric elements, and is rated Type 4X.The LP22LED has four flash patterns (steady light, single flash, double flash and triple flash) selectable via DIP switch.
Features
- Available in 12-24VAC/DC and 90-240VAC
- 1/2-inch NPT pipe, surface, or panel mount
- Four flash patterns
- Five lamp/lens colors: Amber, Blue, Clear, Green and Red
- Self-extinguishing polycarbonate housing
- Type 4X, IP66 Enclosure
- CE Certified
- UL and cUL Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy
- Body Color
- White
- Diameter (in)
- 2.99
- Flash Pattern Type
- 1x Flash, 2X Flash, 3x Flash, or Steady
- Availability
- In Stock - Ships in 2 Bus Days
- Mount Type
- 1/2-Inch NPT Pipe, Flush
- Operating Temp.
- -22˚ to +122˚F (-30˚ to +50˚C)
- Visual Signals Lens Color
- Red
- Depth
- 3.39 in, 8.6106 cm
- Diameter
- 2.99 in, 7.5946 cm
Weight0.22 lbs
Certification ListingCE, UL, cUL
Diameter (mm)75.946
Flashes Per Minute120, 90 FPM, 140 FPM, Steady
Lens ColorRed
Operating Current Amps0.18
Operating Voltage12-24 Vac/dc
Visual Signals Operating Voltage12-24VAC/DC
Height3.39 in, 8.6106 cm
