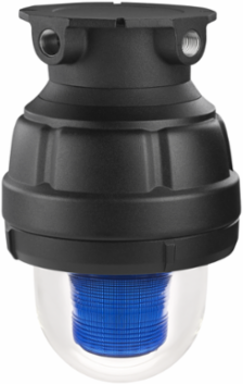

Federal Signal 27XST-240B-MOD Strobe Light, Explosion-Proof, Limited In-Rush, UL and cUL CID1, 240VAC, Blue, Mount Sold Separately
- MPN: 27XST-240B-MOD
- UPC: 782979233442
- PPN: FDS-27XST-240B-MOD
- UNSPSC: 39111706
CAD
$4521.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Federal Signal's Model 27XST explosion-proof strobe light features a voltage in-rush limiting PCB design that provides greater compatibility with factory automation control systems and less electrical interference with in-rush sensitive devices.Three mounting options are available: pendant, ceiling or 90° wall mount. For easy installation, the mounting box is first installed and the fixture is then threaded onto the mounting box, making the electrical connection. Pre-install the mounting bracket and electrical continuity is made when five threads are engaged.Federal Signal's Model 27XST is specifically designed for explosion-proof atmospheres and/or corrosive environments.Because it is easy to install and requires very low maintenance, it is ideal for use in areas such as oil rigs, mines, refineries, and chemical plants.
Features
- Available in 24VDC, 120VAC and 240VAC
- Approved for mounting in any manner - including dome up
- Six lamp/lens colors: Amber, Blue, Clear, Green, Magenta and Red
- 10,000 hour strobe tube
- 3/4" NPT pendant, ceiling, and wall mount options available. Sold separately. (Required)
- Dome guard optional
- Conformal Coated PCBA
- Type 4X, IP66 enclosure
- IP69K complaint
- Marine Rated
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Body Color
- Black
- Candela Power Peak
- 2000000
- Diameter (in)
- 8.82
- Flashes Per Minute
- 80
- Lens Color
- Blue
- Mount Type
- 3/4-Inch NPT Pendant, Ceiling, Wall
- Operating Temp.
- -67˚ to +150˚F (-55˚ to +66˚C)
- Required Mount
- black-mounting-kits
- Visual Signals Operating Voltage
- 240VAC
- Height
- 11.37 in, 28.8798 cm
Weight13.9 lbs
Candela Effective Power850 ECP
Certification ListingCSFM, Marine, UL, cUL
Diameter (mm)224.028
AvailabilityContact Us for Availability
Lens StyleFresnel
Operating Current Amps1.9 @ 24VAC/1.14 @ 120VAC/1.14 @ 240VAC
Operating Voltage240 Vac
Visual Signals Lens ColorBlue
Depth11.37 in, 28.8798 cm
Diameter8.82 in, 22.4028 cm
