Federal Signal 27XST-240M-MOD Strobe Light, Explosion-Proof, Limited In-Rush, UL and cUL CID1, 240VAC, Magenta, Mount Sold Separately
- MPN: 27XST-240M-MOD
- UPC: 782979233473
- PPN: FDS-27XST-240M-MOD
- UNSPSC: 39111706
CAD
$4521.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

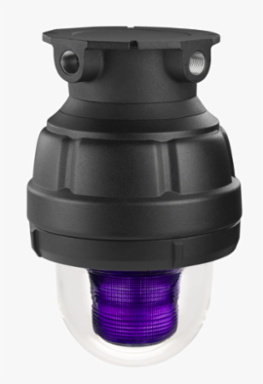

Federal Signal's Model 27XST explosion-proof strobe light features a voltage in-rush limiting PCB design that provides greater compatibility with factory automation control systems and less electrical interference with in-rush sensitive devices.Three mounting options are available: pendant, ceiling, or 90° wall mount. For easy installation, the mounting box is first installed and the fixture is then threaded onto the mounting box, making the electrical connection. Pre-install the mounting bracket; electrical continuity is made when five threads are engaged.Federal Signal's Model 27XST is specifically designed for explosion-proof atmospheres and/or corrosive environments. Because it is easy to install and requires very low maintenance, it is ideal for use in areas such as oil rigs, mines, refineries, and chemical plants.
Features
- Available in 24 Vdc, 120 Vac, and 240 Vac
- Approved for mounting in any manner - including dome up
- Six lamp/lens colors: Amber, Blue, Clear, Green, Magenta and Red
- 10,000-hour strobe tube
- 3/4-inch NPT pendant, ceiling, and wall mount options available. Sold separately. (Required)
- Dome guard optional
- Conformal Coated PCB
- Type 4X, IP66 enclosure
- IP69K compliant
- Marine Rated
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Weight
- 13.9 lbs
- Candela Effective Power
- 850 ECP
- Certification Listing
- CSFM, Marine, UL, cUL
- Flashes Per Minute
- 80
- Lens Color
- Magenta
- Mount Type
- 3/4-Inch NPT Pendant, Ceiling, Wall
- Operating Temp.
- -67˚ to +150˚F (-55˚ to +66˚C)
- Required Mount
- black-mounting-kits
- Visual Signals Operating Voltage
- 240VAC
- Enclosure Rating
- IP66, IP69K, Type 4X
- Product Life Cycle Status
- Completed
Height11.37 in
Body ColorBlack
Candela Power Peak2000000
Diameter8.82 in (224.028 mm)
AvailabilityAvailable in 4-6 Weeks
Lens StyleFresnel
Operating Current Amps1.9 @ 24VAC/1.14 @ 120VAC/1.14 @ 240VAC
Operating Voltage240 Vac
Visual Signals Lens ColorMagenta
Environmental RatingExplosion-Proof
Lead TimeAvailable in 4-6 Weeks
