Federal Signal

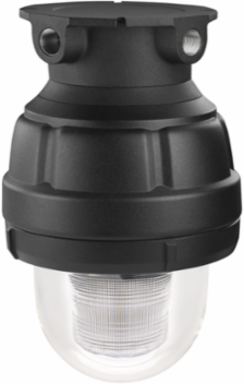

Federal Signal 27XST-240C-MOD Strobe Light, Explosion-Proof, Limited In-Rush, UL and cUL CID1, 240VAC, Clear, Mount Sold Separately

  • MPN: 27XST-240C-MOD
  • UPC: 782979233459
  • PPN: FDS-27XST-240C-MOD
  • UNSPSC: 39111706

CAD

$4521.52

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Federal Signal's Model 27XST explosion-proof strobe light features a voltage in-rush limiting PCB design that provides greater compatibility with factory automation control systems and less electrical interference with in-rush sensitive devices.Three mounting options are available: pendant, ceiling, or 90° wall mount. For easy installation, the mounting box is first installed and the fixture is then threaded onto the mounting box, making the electrical connection. Pre-install the mounting bracket; electrical continuity is made when five threads are engaged.Federal Signal's Model 27XST is specifically designed for explosion-proof atmospheres and/or corrosive environments. Because it is easy to install and requires very low maintenance, it is ideal for use in areas such as oil rigs, mines, refineries, and chemical plants.

Features

  • Available in 24 Vdc, 120 Vac, and 240 Vac
  • Approved for mounting in any manner - including dome up
  • Six lamp/lens colors: Amber, Blue, Clear, Green, Magenta and Red
  • 10,000-hour strobe tube
  • 3/4-inch NPT pendant, ceiling, and wall mount options available. Sold separately. (Required)
  • Dome guard optional
  • Conformal Coated PCB
  • Type 4X, IP66 enclosure
  • IP69K compliant
  • Marine Rated

Documentation & Downloads

Specifications

Key Specifications

Country of OriginUnited States
Weight13.9 lbs
Candela Effective Power850 ECP
Certification ListingCSFM, Marine, UL, cUL
Flashes Per Minute80
Lens ColorClear
Mount Type3/4-Inch NPT Pendant, Ceiling, Wall
Operating Temp.-67˚ to +150˚F (-55˚ to +66˚C)
Required Mountblack-mounting-kits
Visual Signals Operating Voltage240VAC
Enclosure RatingIP66, IP69K, Type 4X
Product Life Cycle StatusCompleted
Height11.37 in
Body ColorBlack
Candela Power Peak2000000
Diameter8.82 in (224.028 mm)
AvailabilityAvailable in 4-6 Weeks
Lens StyleFresnel
Operating Current Amps1.9 @ 24VAC/1.14 @ 120VAC/1.14 @ 240VAC
Operating Voltage240 Vac
Visual Signals Lens ColorClear
Environmental RatingExplosion-Proof
Lead TimeAvailable in 4-6 Weeks
Strobe Light, Explosion-Proof, Limited In-Rush, UL and cUL CID1, 240VAC, Clear, Mount Sold Separately
