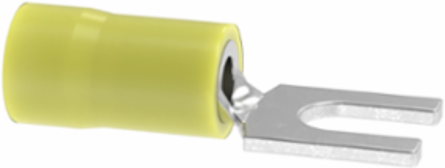

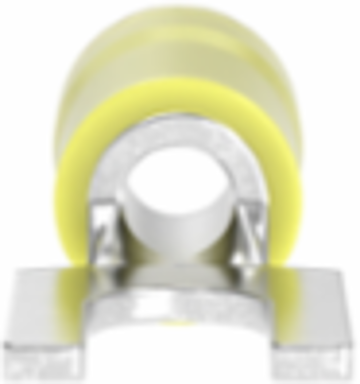

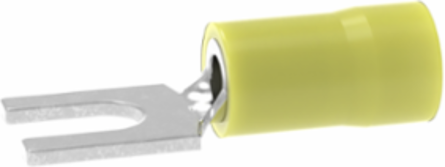

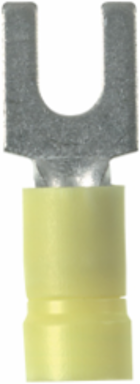

Panduit EV10-10FB-Q StrongHold™ EV10-10FB-Q Loose Piece Forks, Yellow, Vinyl, 1/5" Stud, 12-10 AWG
Panduit EV10-10FB-Q StrongHold™ EV10-10FB-Q Loose Piece Forks, Yellow, Vinyl, 1/5" Stud, 12-10 AWG
- MPN: EV10-10FB-Q
- UPC: 074983280209
- PPN: PAN-EV10-10FB-Q
- UNSPSC: 39121409
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.45/ EA
Description
StrongHold EV10-10FB-Q Contractor Grade Vinyl Insulated Fork Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. Accommodates 12-10 AWG wire gauge, compatible with #10 Stud, are yellow in color, and come in packages of 25.
Specifications
Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Barrel Length (mm)
- 13.2
- Insulation Diameter (mm)
- 5.7
- Tongue Length (mm)
- 13.2
- Maximum Wire Insulation Diameter (In.)
- 0.23
- Stud Hole Size (mm)
- 4.8
- Wire Strip Length (mm)
- 7.9
- Barrel Type
- Funnel Entry
- Fork Type
- Standard
- Minimum Voltage (V)
- 600
- Packaging Type
- Loose Piece
- Base Material
- Copper
- Color Code
- Yellow
- Overall Length (mm)
- 26.4
- Overall Width (mm)
- 9.4
- Seam Type
- Butted
- Maximum Operating Temperature (°C)
- 105
- Tongue Width (mm)
- 9.4
- Tongue Width (In.)
- 0.37
- Maximum Metric Conductor Size (mm²)
- 6
- Minimum Metric Conductor Size (mm²)
- 4
- Overall Width (In.)
- 0.37
- Wire Size
- 12-10 AWG
Any Reason Not to SellN
Barrel Length (In.)0.52
Maximum Operating Temperature (°F)221
Stud Size#10
Flammability RatingUL587-H
Maximum Wire Insulation Diameter (mm)5.7
Sub BrandStrongHold™
Overall Length (In.)1.04
For Use WithCT-100A*, CT-600-A (CT-550CH), CT-1550, CT-1551, CT-2500 (CT-2550CH), CT-160, CT-260, CT-400, CT- 460
Finish/CoatingTin-Plated
Insulation Diameter (In.)0.23
Tongue Thickness (In.)0.04
Stud Hole Size (In.)#10
Insulation MaterialVinyl
Tongue Thickness (mm)1
Tongue Length (In.)0.52
Minimum Operating Temperature (°C)105
Minimum Operating Temperature (°F)221
Maximum Voltage (V)600
Minimum Voltage (kV)0.6
Maximum Voltage (kV)0.6
Product TypeFork Terminal
Wire Strip Length (In.)5/16
Copper Conductor Size12-10 AWG
Packaging Details
- UPC
- 07498328020
- Standard Package Volume Ft3
- 0.0103
- Std Package Height In
- .8
- Std Package Length In
- 4.5
- Std Package Width In
- 2.9
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 25
- Standard Carton Volume Ft3
- 0.1031
- Std Carton Height In
- 4.4
- Std Carton Length In
- 9.1
- Std Carton Width In
- 4.4
- Std Ctn Qty
- 250
- EAN
- 00074983280209
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 0
- Pallet Weight
- 0.0000
GTIN Package00074983280209
Standard Package Weight Pounds0.0500
Std Package Height MM20.32
Std Package Length MM114.3
Std Package Width MM73.66
UOM EA PKPK
GTIN Carton50074983280204
Standard Carton Weight Pounds0.5000
Std Carton Height MM111.76
Std Carton Length MM231.14
Std Carton Width MM111.76
Min. Order UOMPiece
REACH StatusN
Mercury Content IndicatorN
Min Order Qty250.0000
Pallet Volume0.000000
RoHS CompliantCompliant
