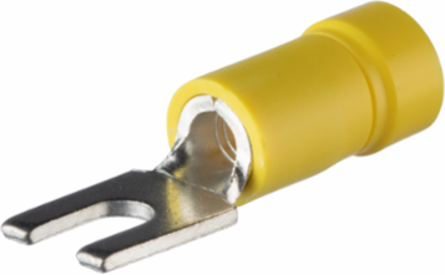

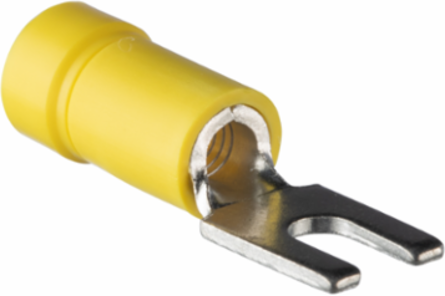

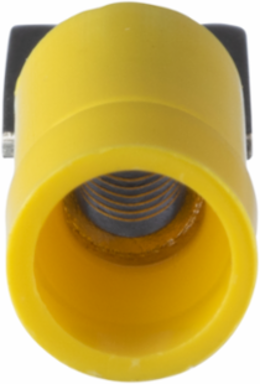

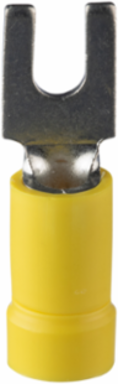

Panduit EV10-6FB-Q StrongHold™ EV10-6FB-Q Loose Piece Forks, Yellow, Vinyl, 1/8" Stud, 12-10 AWG
- MPN: EV10-6FB-Q
- UPC: 074983280186
- PPN: PAN-EV10-6FB-Q
- UNSPSC: 39121409
CAD
$0.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
StrongHold EV10-6FB-Q Contractor Grade Insulated Fork Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The fork design provides for fast and easy installation, without the need to remove fastener. Accommodates 12-10 AWG, compatible with #6 Stud (M3.5), are yellow in color, and come in packages of 25.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Product Segment | IEI |
| Maximum Wire Insulation Diameter (In.) | 0.23 |
| Tongue Width (In.) | 0.31 |
| Color Code | Yellow |
| Barrel Length (In.) | 0.51 |
| Tongue Length (mm) | 12.8 |
| Insulation Diameter (mm) | 5.7 |
| Base Material | Copper |
| Barrel Length (mm) | 12.8 |
| Product Type | Fork Terminal |
| Tongue Thickness (mm) | 1 |
| Wire Strip Length (In.) | 5/16 |
| Overall Width (In.) | 0.31 |
| Insulation Material | Vinyl |
| Packaging Type | Loose Piece |
| Minimum Metric Conductor Size (mm²) | 4 |
| Maximum Voltage (kV) | 0.6 |
| Barrel Type | Funnel Entry |
| Tongue Width (mm) | 7.9 |
| Stud Hole Size (mm) | 3.2 |
| Seam Type | Butted |
| Maximum Voltage (V) | 600 |
| Wire Size | 12-10 AWG |
| Any Reason Not to Sell | N |
|---|---|
| Overall Width (mm) | 7.9 |
| Maximum Wire Insulation Diameter (mm) | 5.7 |
| Wire Strip Length (mm) | 7.9 |
| Fork Type | Standard |
| Finish/Coating | Tin-Plated |
| Minimum Operating Temperature (°F) | 221 |
| Overall Length (mm) | 25.7 |
| Tongue Thickness (In.) | 0.04 |
| Stud Hole Size (In.) | #6 |
| For Use With | CT-100A*, CT-600-A (CT-550CH), CT-1550, CT-1551, CT-2500 (CT-2550CH), CT-160, CT-260, CT-400, CT- 460 |
| Maximum Operating Temperature (°F) | 221 |
| Tongue Length (In.) | 0.51 |
| Maximum Operating Temperature (°C) | 105 |
| Minimum Voltage (kV) | 0.6 |
| Minimum Operating Temperature (°C) | 105 |
| Flammability Rating | UL 587 H |
| Minimum Voltage (V) | 600 |
| Sub Brand | StrongHold™ |
| Stud Size | #6 |
| Overall Length (In.) | 1.01 |
| Insulation Diameter (In.) | 0.23 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Copper Conductor Size | 12-10 AWG |
Packaging Details
| UPC | 07498328018 |
|---|---|
| Standard Package Volume Ft3 | 0.0100 |
| Std Package Height In | .65 |
| Std Package Length In | 4.55 |
| Std Package Width In | 2.95 |
| Std. Pkg. UOM | Piece |
| Std. Pkg. Qty. | 25 |
| Standard Carton Volume Ft3 | 0.0996 |
| Std Carton Height In | 4.4 |
| Std Carton Length In | 9.1 |
| Std Carton Width In | 4.4 |
| Std Ctn Qty | 250 |
| EAN | 00074983280186 |
| ARRA Compliant | Y |
| Hazardous Material Flag | N |
| Pallet Quantity | 0 |
| Pallet Weight | 0.0000 |
| GTIN Package | 00074983280186 |
|---|---|
| Standard Package Weight Pounds | 0.1200 |
| Std Package Height MM | 16.51 |
| Std Package Length MM | 115.57 |
| Std Package Width MM | 74.93 |
| UOM EA PK | PK |
| GTIN Carton | 50074983280181 |
| Standard Carton Weight Pounds | 1.2000 |
| Std Carton Height MM | 111.76 |
| Std Carton Length MM | 231.14 |
| Std Carton Width MM | 111.76 |
| Min. Order UOM | Piece |
| REACH Status | N |
| Mercury Content Indicator | N |
| Min Order Qty | 250.0000 |
| Pallet Volume | 0.000000 |
| RoHS Compliant | Compliant |
